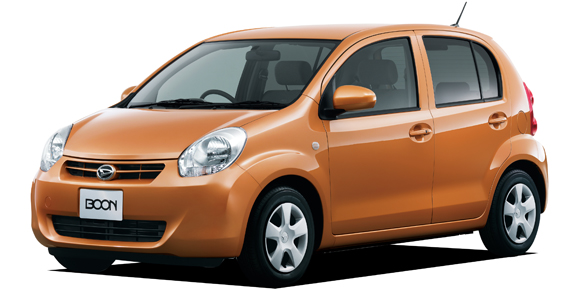

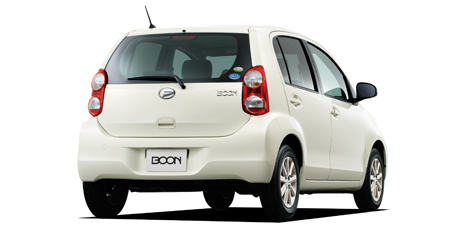

DAIHATSU BOON 1.3CX

DAIHATSU BOON

M601S · 1.3CX

Description

Modification: 1.3CX
Chassis ID: M601S
Dates releasing: 2010.2~
Base price, ¥: DBA-M601S
Body size: 3640x1665x1535
Interior (LxWxH): 1830x1420x1280
Wheelbase: 2440
Track f/r: 1455mm/1465mm
Full weight, kg: 940
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

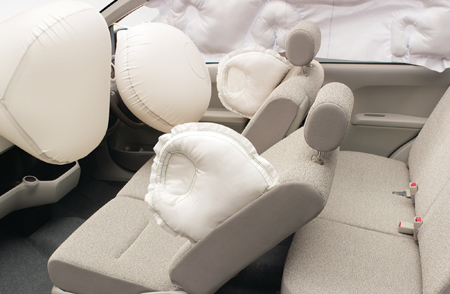

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓

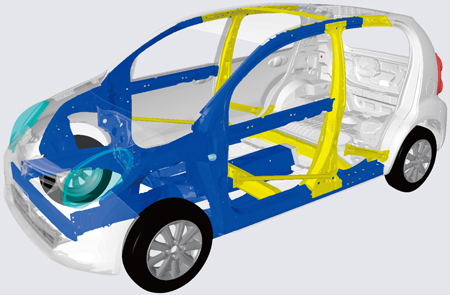

Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

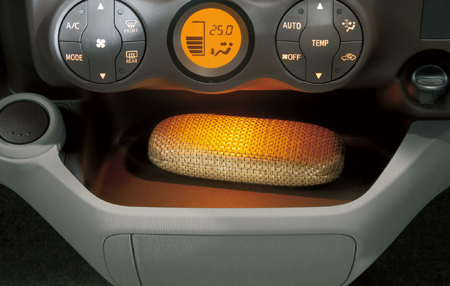

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×

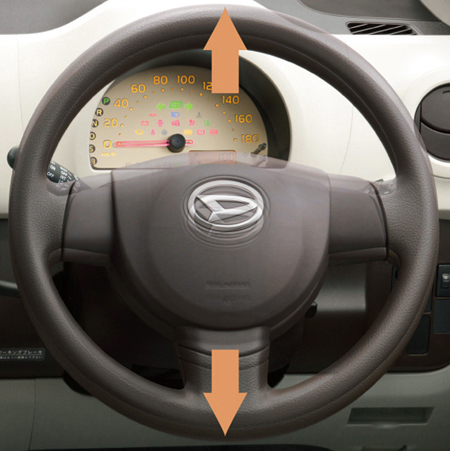

Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard

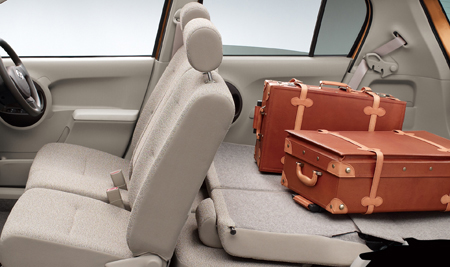

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1NR-FE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 72.5x80.5
Engine size, cc: 1329
Compression ratio: 11.5
Fuel injection: EFI
Max power, hp/rpm: 95ps(70kW)/6000rpm
Max torque, Nm/rpm: 12.3kg m(121N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/70R14 81S
Rear wheel: 165/70R14 81S
Min turn diameter, m: 4.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not

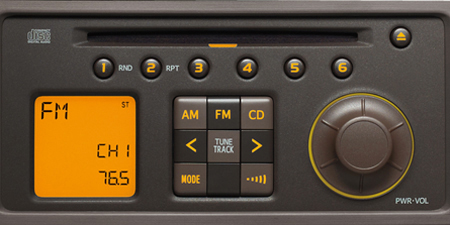

Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / Black mica metallicwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Bright silver metallicRed / Other RedBlueDark cyanPearl / Pearl white IGold / Other Gold
