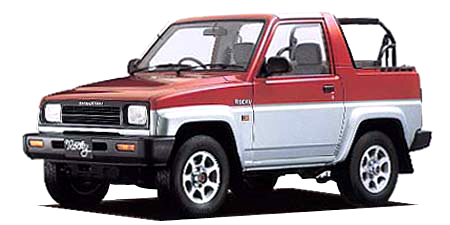

DAIHATSU ROCKY SX

DAIHATSU ROCKY

F300S · SX

Description

Modification: SX
Chassis ID: F300S
Dates releasing: 1990.6~
Base price, ¥: E-F300S
Body size: 3705x1635x1725
Interior (LxWxH): 1690x1300x1175
Wheelbase: 2175
Track f/r: 1330mm/1330mm
Full weight, kg: 1250
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: HD-E
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: 76.0x87.6
Engine size, cc: 1589
Compression ratio: 9.5
Fuel injection: EFI
Max power, hp/rpm: 105ps(77kW)/6000rpm
Max torque, Nm/rpm: 14.3kg m(140.2N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションバースプリング
Rear suspension: 半楕円リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 225/70R15 100S
Rear wheel: 225/70R15 100S
Min turn diameter, m: 5.7

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.752	2.182	1.428	1.000	0.865	—	—	—	3.942

Available colors

black / BLACK M / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
