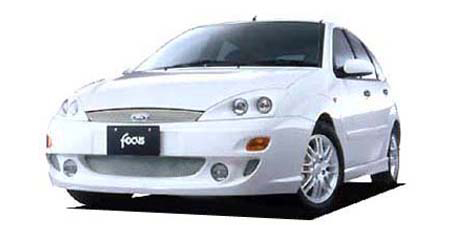

EUROPE FORD FOCUS SPORT OUT FIT

EUROPE FORD FOCUS

WF0EDD · SPORT OUT FIT

Description

Modification: SPORT OUT FIT
Chassis ID: WF0EDD
Dates releasing: 2001.1~
Base price, ¥: GF-WF0EDD
Body size: 4155x1710x1480
Interior (LxWxH): 1700x1285x1200
Wheelbase: 2615
Track f/r: 1485mm/1475mm
Full weight, kg: 1220
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 84.4x88.0
Engine size, cc: 1969
Compression ratio: 10.0
Fuel injection: 電子制御フュエルインジェクション
Max power, hp/rpm: 131ps(96kW)/5500rpm
Max torque, Nm/rpm: 18.2kg m(178N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/60R15
Rear wheel: 195/60R15
Min turn diameter, m: 5.4

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.816	1.498	1.000	0.726	—	—	—	—	2.649

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
