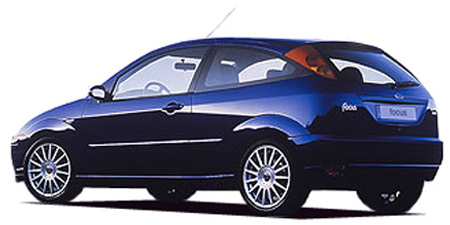

EUROPE FORD FOCUS ST170

EUROPE FORD FOCUS

WF0ALD · ST170

Description

Modification: ST170
Chassis ID: WF0ALD
Dates releasing: 2003.5~
Base price, ¥: GH-WF0ALD
Body size: 4170x1710x1480
Interior (LxWxH): 1700x1255x1200
Wheelbase: 2615
Track f/r: 1490mm/1485mm
Full weight, kg: 1240
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティ PRO グラム)

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 84.8x88.0
Engine size, cc: 1988
Compression ratio: ----
Fuel injection: 電子制御フュエルインジェクション
Max power, hp/rpm: 173ps(127kW)/7000rpm
Max torque, Nm/rpm: 19.9kg m(195N m)/5500rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/45R17
Rear wheel: 215/45R17
Min turn diameter, m: ----

Gearbox

Number of stages: 6MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.455	2.714	1.333	1.089	1.333	1.089	—	—	2.818

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
