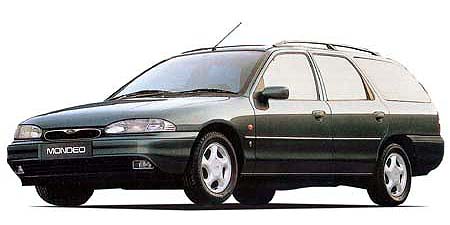

EUROPE FORD MONDEO WAGON GLX

EUROPE FORD MONDEO

WF0NNG · WAGON GLX

Description

Modification: WAGON GLX
Chassis ID: WF0NNG
Dates releasing: 1995.10~
Base price, ¥: E-WF0NNG
Body size: 4640x1750x1475
Interior (LxWxH): 1835x1320x1165
Wheelbase: 2700
Track f/r: 1500mm/1485mm
Full weight, kg: 1390
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 84.8x88.0
Engine size, cc: 1988
Compression ratio: 10.0
Fuel injection: 電子制御フュエルインジェクション
Max power, hp/rpm: 135ps(99kW)/6000rpm
Max torque, Nm/rpm: 18.0kg m(176.5N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 61 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: ショート&ロングアーム
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 195/60R14
Rear wheel: 195/60R14
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.890	1.571	1.000	0.698	—	—	—	—	2.310

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
