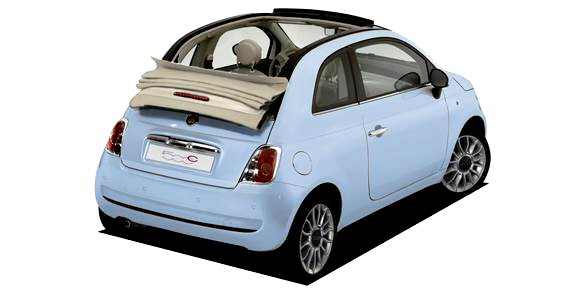

FIAT 500C VINTAGE

FIAT 500C

31212 · VINTAGE

Description

Modification: VINTAGE
Chassis ID: 31212
Dates releasing: 2010.6~
Base price, ¥: ABA-31212
Body size: 3545x1625x1505
Interior (LxWxH): ----x----x----
Wheelbase: 2300
Track f/r: 1415mm/1410mm
Full weight, kg: 1030
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(ASR/MSR/HBA/ASR-OFFスイッチ付) FPS(火災防止装置) ヒルホールドシステム

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 169A4
Type: inline 4 cylinder SOHC 8-valves
Bore x stroke, mm: 70.8x78.8
Engine size, cc: 1240
Compression ratio: 11.1
Fuel injection: マルチポイント type 電子制御燃料噴射
Max power, hp/rpm: 69ps(51kW)/5500rpm
Max torque, Nm/rpm: 10.4kg m(102N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 35 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/55R15
Rear wheel: 185/55R15
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.909	2.158	1.480	1.121	0.897	—	—	—	3.818

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearlGold
