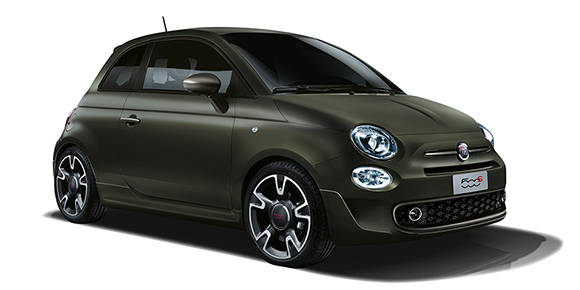

FIAT 500S PLUS

FIAT 500S

31209 · PLUS

Description

Modification: PLUS
Chassis ID: 31209
Dates releasing: 2017.7~
Base price, ¥: ABA-31209
Body size: 3610x1625x1515
Interior (LxWxH): ----x----x----
Wheelbase: 2300
Track f/r: 1415mm/1410mm
Full weight, kg: 1010
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC[エレクトロニックスタビリティコントロール] MSR[モーターシュレップレ&#1

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: 312A2
Type: inline 2 cylinder 8-valves IC-turbo
Bore x stroke, mm: 80.5x86.0
Engine size, cc: 875
Compression ratio: 10.0
Fuel injection: マルチポイント type 電子制御燃料噴射
Max power, hp/rpm: 85ps(63kW)/5500rpm
Max torque, Nm/rpm: 14.8kg m(145N m)/1900rpm
Supercharger: IC turbo
Fuel tank, liters: 35 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 3.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: disk
Rear brake: Drum
Front wheel: 195/45R16
Rear wheel: 195/45R16
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.100	2.174	1.345	0.974	0.766	—	—	—	3.818

Available colors

blackwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
