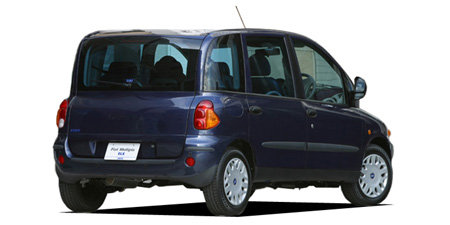

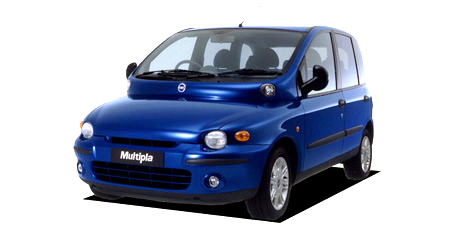

FIAT MULTIPLA ELX

FIAT MULTIPLA

186B6 · ELX

Description

Modification: ELX
Chassis ID: 186B6
Dates releasing: 2004.4~
Base price, ¥: GH-186B6
Body size: 4005x1875x1670
Interior (LxWxH): ----x----x----
Wheelbase: 2665
Track f/r: 1510mm/1510mm
Full weight, kg: 1360
Body type: MV 1Box
Doors / seats: 5 door / 6

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: FPS火災防止装置

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 80.5x78.4
Engine size, cc: 1596
Compression ratio: 10.5
Fuel injection: マルチポイント type 電子制御燃料噴射
Max power, hp/rpm: 103ps(76kW)/5750rpm
Max torque, Nm/rpm: 14.8kg m(145N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 61 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension McPherson Strut type
Rear suspension: Independent suspension トレーリングアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R 15
Rear wheel: 185/65R 15
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.909	2.238	1.520	1.156	0.946	—	—	—	3.909

Available colors

black / Black Metallicwhite / White solidgreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
