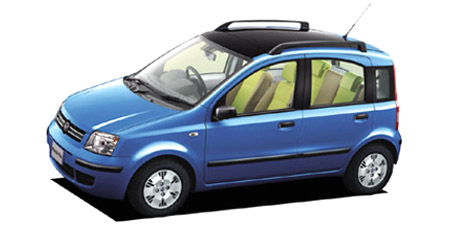

FIAT NEW PANDA PLUS

FIAT NEW PANDA

16912 · PLUS

Description

Modification: PLUS
Chassis ID: 16912
Dates releasing: 2004.7~
Base price, ¥: GH-16912
Body size: 3535x1590x1570
Interior (LxWxH): ----x----x----
Wheelbase: 2300
Track f/r: 1370mm/1365mm
Full weight, kg: 960
Body type: Hatch
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: FPS(火災防止装置)

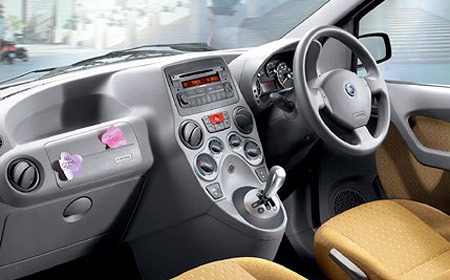

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

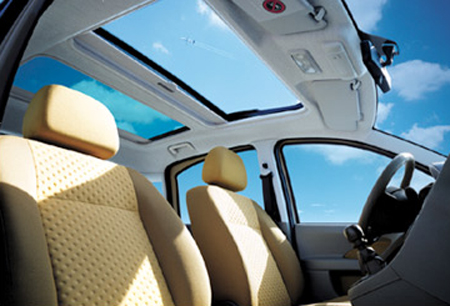

Sunroof: ツイン
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 188A4
Type: inline 4 cylinder SOHC 8-valves
Bore x stroke, mm: 70.8x78.8
Engine size, cc: 1240
Compression ratio: 9.8
Fuel injection: マルチポイント type 電子制御燃料噴射
Max power, hp/rpm: 60ps(44kW)/5000rpm
Max torque, Nm/rpm: 10.4kg m(102N m)/2500rpm
Supercharger: ×
Fuel tank, liters: 35 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Independent suspension McPherson Strut type
Rear suspension: Torsion beam
Front brake: disk
Rear brake: Drum
Front wheel: 155/80R13
Rear wheel: 155/80R13
Min turn diameter, m: ----

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.909	2.158	1.480	1.121	0.897	—	—	—	3.818

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearlGold
