JDM Vehicle Catalog

Vehicle Specs

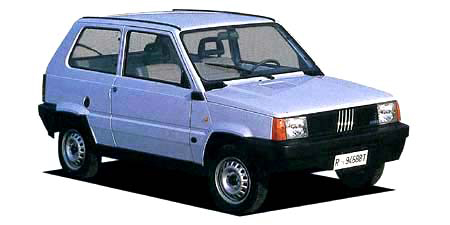

FIAT PANDA 4X4

FIAT PANDA

141A3 · 4X4

Description

Modification: 4X4
Chassis ID: 141A3
Dates releasing: 1989.1~
Base price, ¥: E-141A3
Body size: 3405x1510x1465
Interior (LxWxH): 1670x1210x1180
Wheelbase: 2170
Track f/r: 1270mm/1270mm
Full weight, kg: 780
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: water cooling inline 4 cylinder SOHC
Bore x stroke, mm: 70.0x64.9
Engine size, cc: 999
Compression ratio: 9.8
Fuel injection: ツーバレルキャブレター
Max power, hp/rpm: 50ps(37kW)/5500rpm
Max torque, Nm/rpm: 8.0kg m(78.5N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 35 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: リジット/縦置リーフ
Front brake: disk
Rear brake: Drum
Front wheel: 145R13
Rear wheel: 145R13
Min turn diameter, m: ----

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
