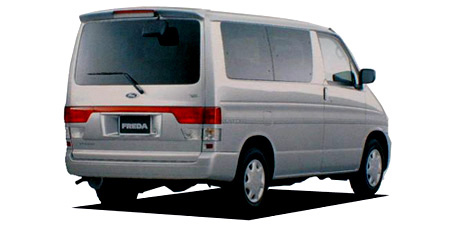

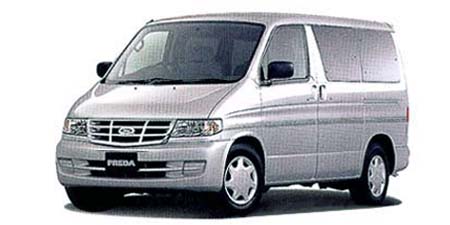

FORD JAPAN FREDA SUPER XL-T

FORD JAPAN FREDA

SGL5F · SUPER XL-T

Description

Modification: SUPER XL-T
Chassis ID: SGL5F
Dates releasing: 1999.2~
Base price, ¥: KD-SGL5F
Body size: 4620x1690x2090
Interior (LxWxH): 2815x1570x1295
Wheelbase: 2920
Track f/r: 1465mm/1440mm
Full weight, kg: 1910
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: 特殊形状
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: WL
Type: water cooling inline 4 cylinder OHC 12-valves IC-turbo (Diesel)
Bore x stroke, mm: 93.0x92.0
Engine size, cc: 2499
Compression ratio: 19.8
Fuel injection: 分配 type 燃料噴射ポンプ
Max power, hp/rpm: 125ps(92kW)/4000rpm
Max torque, Nm/rpm: 30.0kg m(294.2N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 65 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 195/70R15 92S
Rear wheel: 215/65R15 96S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.027	1.619	1.000	0.694	—	—	—	—	2.272

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
