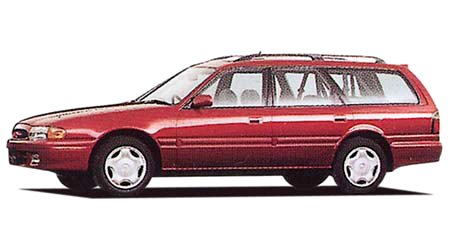

FORD JAPAN TELSTAR WAGON 20D-E

FORD JAPAN TELSTAR WAGON

GVFRF · 20D-E

Description

Modification: 20D-E
Chassis ID: GVFRF
Dates releasing: 1995.10~
Base price, ¥: KD-GVFRF
Body size: 4610x1695x1510
Interior (LxWxH): 1865x1435x1185
Wheelbase: 2575
Track f/r: 1450mm/1465mm
Full weight, kg: 1510
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: RF
Type: water cooling inline 4 cylinder OHCSチャー&#12
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 20.9
Fuel injection: 分配 type 燃料噴射ポンプ
Max power, hp/rpm: 88ps(65kW)/4000rpm
Max torque, Nm/rpm: 19.0kg m(186.3N m)/2000rpm
Supercharger: S charger
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Strut type
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R15 88S
Rear wheel: 185/65R15 88S
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.800	1.540	1.000	0.700	—	—	—	—	2.333

Available colors

black / Brilliant Blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
