JDM Vehicle Catalog

Vehicle Specs

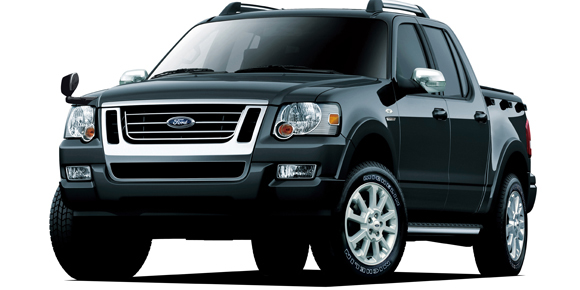

FORD EXPLORER SPORT TRAC V8 LIMITED VICENNIAL EDITION

FORD EXPLORER SPORT TRAC

1FM8U53 · V8 LIMITED VICENNIAL EDITION

Description

Modification: V8 LIMITED VICENNIAL EDITION
Chassis ID: 1FM8U53
Dates releasing: 2011.1~
Base price, ¥: ABF-1FM8U53
Body size: 5370x1870x1840
Interior (LxWxH): 1710x1395x1160
Wheelbase: 3315
Track f/r: 1550mm/1580mm
Full weight, kg: 2280
Body type: Pickup
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: F1
Type: water cooling V-type 8 cylinder SOHC
Bore x stroke, mm: 90.2x90.0
Engine size, cc: 4600
Compression ratio: 9.1
Fuel injection: 電子制御フュエルインジェクション
Max power, hp/rpm: 296ps(218kW)/5750rpm
Max torque, Nm/rpm: 41.5kg m(407N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 85 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ショート&ロングアーム
Rear suspension: ショート&ロングアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/65R18
Rear wheel: 235/65R18
Min turn diameter, m: 6.25

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.171	2.340	1.521	1.143	0.867	0.691	—	—	3.403

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
