JDM Vehicle Catalog

Vehicle Specs

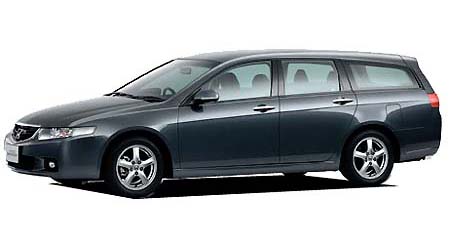

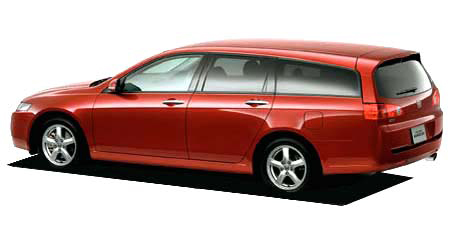

HONDA ACCORD WAGON 24E EXCLUSIVE PACKAGE

HONDA ACCORD WAGON

CM3 · 24E EXCLUSIVE PACKAGE

Description

Modification: 24E EXCLUSIVE PACKAGE
Chassis ID: CM3
Dates releasing: 2004.1~
Base price, ¥: ABA-CM3
Body size: 4750x1760x1490
Interior (LxWxH): 1915x1490x1195
Wheelbase: 2720
Track f/r: 1510mm/1515mm
Full weight, kg: 1580
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K24A
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 87.0x99.0
Engine size, cc: 2354
Compression ratio: 9.7
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 160ps(118kW)/5500rpm
Max torque, Nm/rpm: 22.0kg m(216N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: トレーリングアーム Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16 89V
Rear wheel: 205/55R16 89V
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.651	1.516	1.081	0.772	0.566	—	—	—	2.000

Available colors

black / Nighthawk Black Pearlwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Satin Silver MetallicRed / Other RedBlue / Other BlueDark cyanPearl / Premium White PearlGold / Other Gold
