HONDA ACCORD 24TL

HONDA ACCORD

CU2 · 24TL

Description

Modification: 24TL
Chassis ID: CU2
Dates releasing: 2008.12~
Base price, ¥: DBA-CU2
Body size: 4730x1840x1440
Interior (LxWxH): 2015x1530x1165
Wheelbase: 2705
Track f/r: 1580mm/1580mm
Full weight, kg: 1510
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制) Motion Adaptive EPS

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓

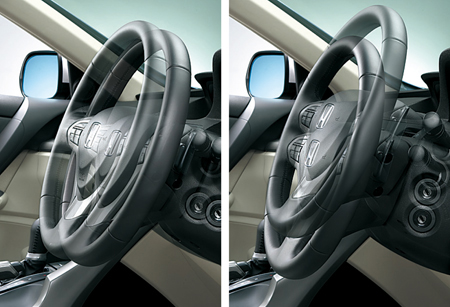

Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —

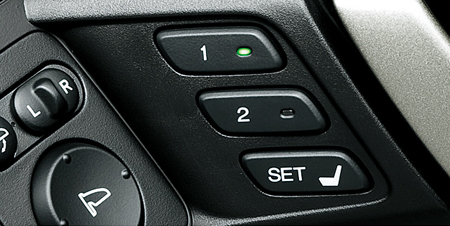

Power front seat: ✓
Power rear seat: ×
Wood panel: ×

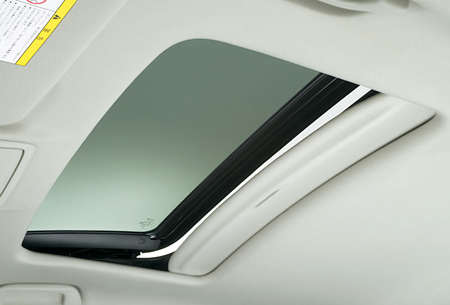

Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: K24A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.0x99.0
Engine size, cc: 2354
Compression ratio: 11.0
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 206ps(151kW)/7000rpm
Max torque, Nm/rpm: 23.7kg m(232N m)/4300rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: マルチリンク Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50R17 94V
Rear wheel: 225/50R17 94V
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

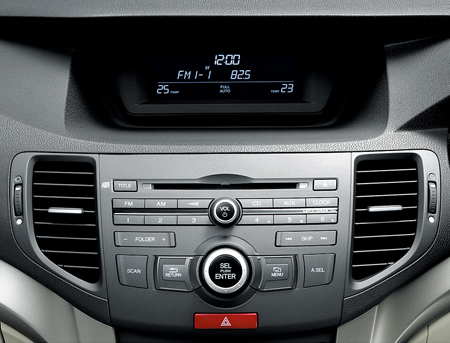

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.651	1.613	1.081	0.772	0.566	—	—	—	2.000

Available colors

black / Crystal black pearlwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / Premium White PearlGold
