JDM Vehicle Catalog

Vehicle Specs

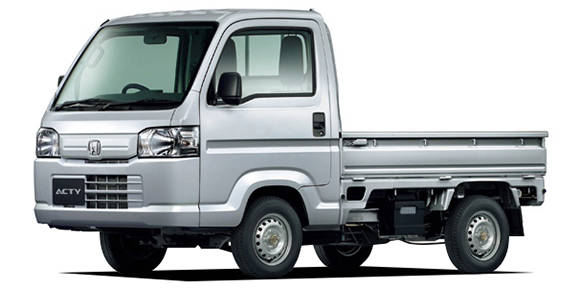

HONDA ACTY TRUCK SDX

HONDA ACTY TRUCK

HA8 · SDX

Description

Modification: SDX
Chassis ID: HA8
Dates releasing: 2015.3~
Base price, ¥: EBD-HA8
Body size: 3395x1475x1745
Interior (LxWxH): ----x----x----
Wheelbase: 1900
Track f/r: 1295mm/1310mm
Full weight, kg: 780
Body type: Kei truck
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ◯
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ◯
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: E07Z
Type: water cooling inline 3 cylinder SOHC 12-valves
Bore x stroke, mm: 66.0x64.0
Engine size, cc: 656
Compression ratio: 10.5
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 45ps(33kW)/5500rpm
Max torque, Nm/rpm: 6.0kg m(59N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 37 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ドディオン
Front brake: disk
Rear brake: Drum
Front wheel: 145R12-6PR LT
Rear wheel: 145R12-6PR LT
Min turn diameter, m: 3.6

Gearbox

Number of stages: 5MT
Drive: Mid-ship
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.545	2.500	1.680	1.133	0.810	—	—	—	4.300

Available colors

black / Other blackwhite / Taffeta WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Alabaster Silver MetallicRedBlue / Other BlueDark cyanPearlGold
