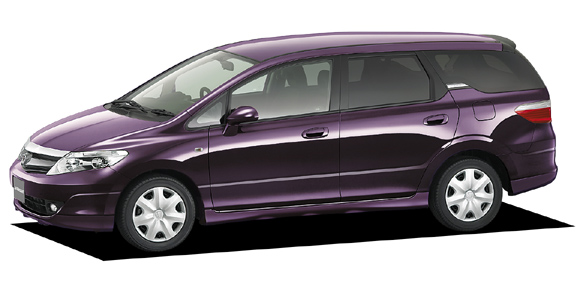

HONDA AIRWAVE M HDD NAVI STYLE EDITION

HONDA AIRWAVE

GJ1 · M HDD NAVI STYLE EDITION

Description

Modification: M HDD NAVI STYLE EDITION
Chassis ID: GJ1
Dates releasing: 2007.6~
Base price, ¥: DBA-GJ1
Body size: 4350x1695x1505
Interior (LxWxH): 1930x1390x1250
Wheelbase: 2550
Track f/r: 1465mm/1455mm
Full weight, kg: 1170

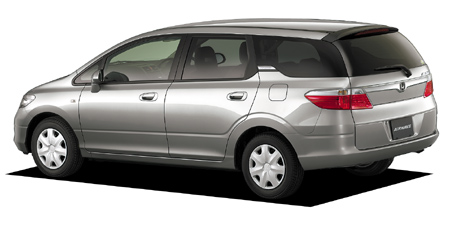

Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓

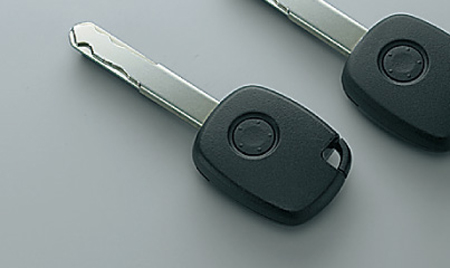

Anti-theft device: ✓
Additional equipment: ×

Comfort

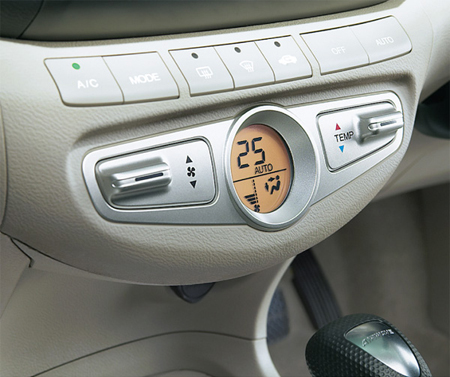

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×

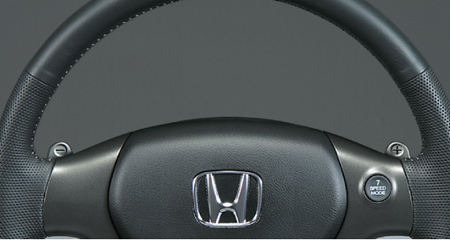

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

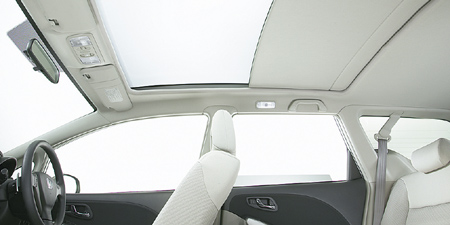

Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: L15A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 73.0x89.4
Engine size, cc: 1496
Compression ratio: 10.4
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 110ps(81kW)/5800rpm
Max torque, Nm/rpm: 14.6kg m(143N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R14 86S
Rear wheel: 185/65R14 86S
Min turn diameter, m: 5.1

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

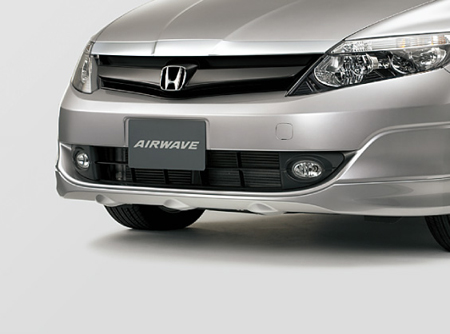

Front fog lights: ✓
Rear fog lights: ×

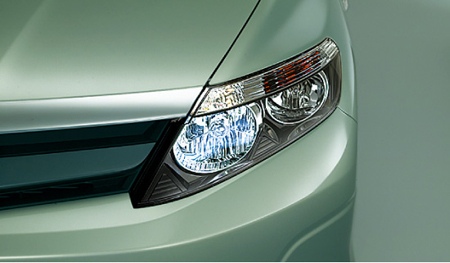

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

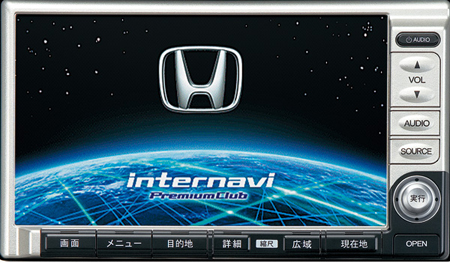

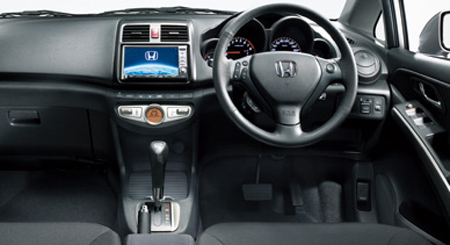

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

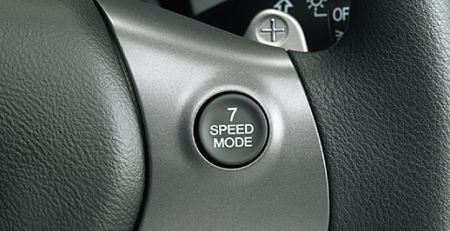

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.367~0.407	1.859	1.258	0.967	0.764	0.621	0.519	0.463	—	4.226~2.367

Available colors

black / Nighthawk Black PearlwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Premium White PearlGold / Other Gold
