HONDA CIVIC 1.8GL

HONDA CIVIC

FD1 · 1.8GL

Description

Modification: 1.8GL
Chassis ID: FD1
Dates releasing: 2008.9~
Base price, ¥: DBA-FD1
Body size: 4535x1750x1440
Interior (LxWxH): 1900x1470x1170
Wheelbase: 2700
Track f/r: 1500mm/1525mm
Full weight, kg: 1240
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓

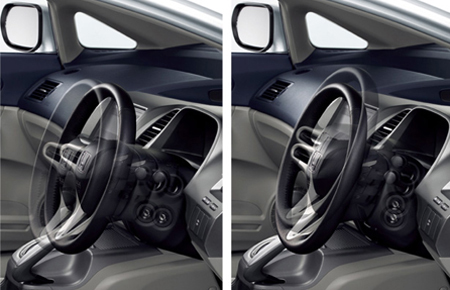

Steering column length: ✓
Steering column height: ✓
Cruise control: ◯

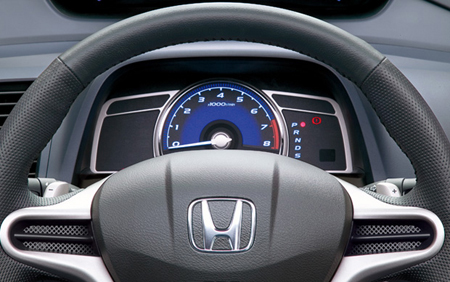

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

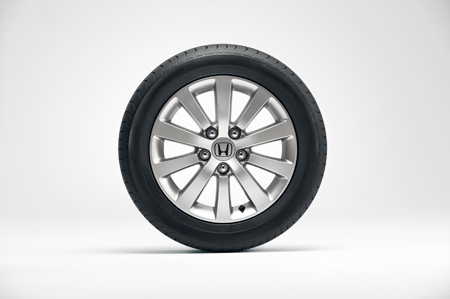

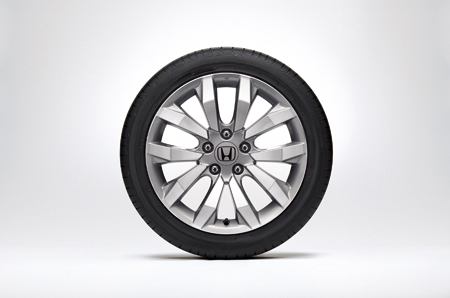

Alloy wheels: 16 inches standard

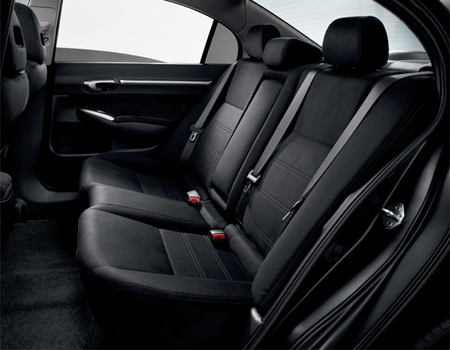

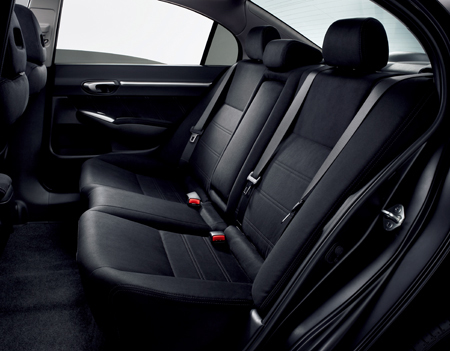

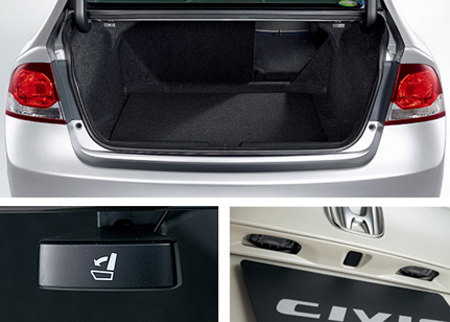

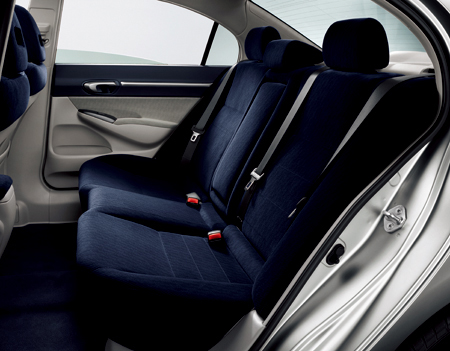

Folding seat: split

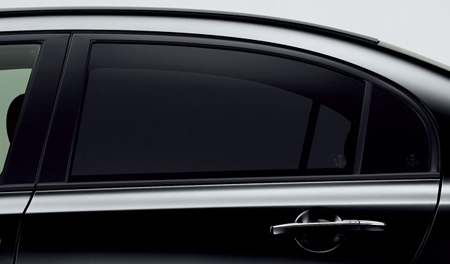

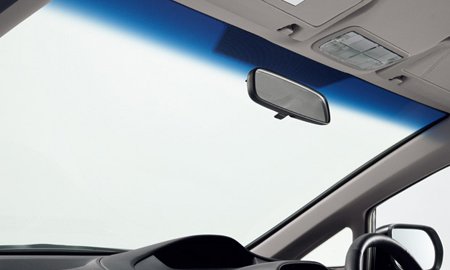

Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: R18A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 81.0x87.3
Engine size, cc: 1799
Compression ratio: 10.5
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 140ps(103kW)/6300rpm
Max torque, Nm/rpm: 17.7kg m(174N m)/4300rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16 91V
Rear wheel: 205/55R16 91V
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×

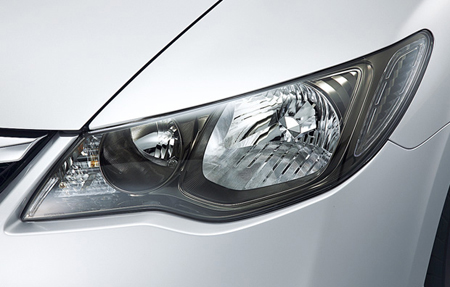

Xenon: ✓
Extra front lights: ×

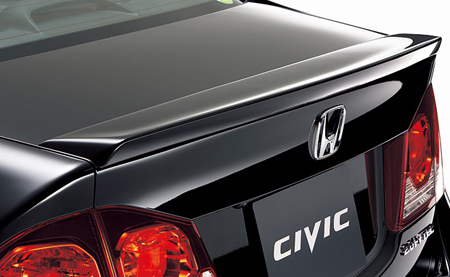

Spoilers (f / r): ✓ / ◯
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.666	1.534	1.066	0.756	0.550	—	—	—	1.956

Available colors

black / Crystal black pearlwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Alabaster Silver Metallic / Other SilverRedBlueDark cyanPearl / Premium White PearlGold
