Vehicle Specs

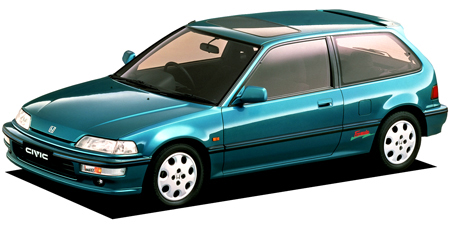

HONDA CIVIC 25XT FORMULA

HONDA CIVIC

EF2 · 25XT FORMULA

Description

Modification: 25XT FORMULA
Chassis ID: EF2
Dates releasing: 1990.9~
Base price, ¥: E-EF2
Body size: 3995x1680x1335
Interior (LxWxH): 1830x1360x1105
Wheelbase: 2500
Track f/r: 1450mm/1455mm
Full weight, kg: 900
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: D15B
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x84.5
Engine size, cc: 1493
Compression ratio: 9.2
Fuel injection: キャブレター type (2連)
Max power, hp/rpm: 105ps(77kW)/6500rpm
Max torque, Nm/rpm: 13.2kg m(129.4N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type (stabilizer attaching)
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14 82H
Rear wheel: 175/65R14 82H
Min turn diameter, m: 4.8

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.250	1.894	1.259	0.937	0.771	—	—	—	3.153

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyan / Other Dark cyanPearlGold
