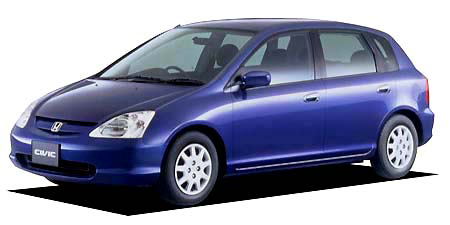

HONDA CIVIC QUALITY EDITION

HONDA CIVIC

EU2 · QUALITY EDITION

Description

Modification: QUALITY EDITION
Chassis ID: EU2
Dates releasing: 2001.5~
Base price, ¥: LA-EU2
Body size: 4285x1695x1515
Interior (LxWxH): 1885x1420x1230
Wheelbase: 2680
Track f/r: 1465mm/1465mm
Full weight, kg: 1210
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: D15B
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x84.5
Engine size, cc: 1493
Compression ratio: 9.9
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 115ps(85kW)/6500rpm
Max torque, Nm/rpm: 14.2kg m(139N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R14 88S
Rear wheel: 185/70R14 88S
Min turn diameter, m: 5.4

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.722	1.468	0.975	0.673	—	—	—	—	1.954

Available colors

black / Nighthawk Black Pearlwhite / Taffeta WhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Satin Silver MetallicRedBlue / Other BlueDark cyanPearl / Other PearlGold
