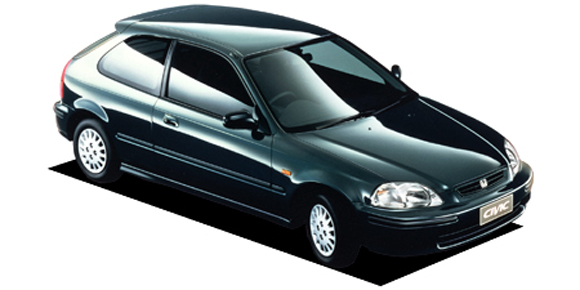

HONDA CIVIC RI II

HONDA CIVIC

EK3 · RI II

Description

Modification: RI II
Chassis ID: EK3
Dates releasing: 1996.1~
Base price, ¥: E-EK3
Body size: 4180x1695x1375
Interior (LxWxH): 1705x1390x1115
Wheelbase: 2620
Track f/r: 1475mm/1475mm
Full weight, kg: 980
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: D15B
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x84.5
Engine size, cc: 1493
Compression ratio: 9.4
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 105ps(----kW)/6400rpm
Max torque, Nm/rpm: 13.6kg m(----N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: disk
Rear brake: Drum
Front wheel: 175/70R13 82S
Rear wheel: 175/70R13 82S
Min turn diameter, m: 5.0

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.250	1.782	1.172	0.909	0.702	—	—	—	3.153

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Milano RedBlue / Other BlueDark cyanPearlGold
