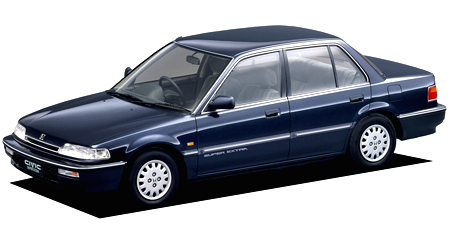

HONDA CIVIC RTi LIMITED

HONDA CIVIC

EF5 · RTi LIMITED

Description

Modification: RTi LIMITED
Chassis ID: EF5
Dates releasing: 1990.9~
Base price, ¥: E-EF5
Body size: 4310x1695x1380
Interior (LxWxH): 1890x1385x1125
Wheelbase: 2500
Track f/r: 1445mm/1455mm
Full weight, kg: 1110
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ZC
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x90.0
Engine size, cc: 1590
Compression ratio: 9.1
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 120ps(88kW)/6300rpm
Max torque, Nm/rpm: 14.5kg m(142.2N m)/5500rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone type (stabilizer attaching)
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14 82H
Rear wheel: 175/65R14 82H
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.529	1.428	0.974	0.733	—	—	—	—	1.954

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
