JDM Vehicle Catalog

Vehicle Specs

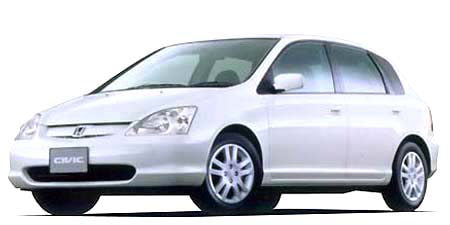

HONDA CIVIC STYLE EDITION

HONDA CIVIC

EU3 · STYLE EDITION

Description

Modification: STYLE EDITION
Chassis ID: EU3
Dates releasing: 2001.6~
Base price, ¥: LA-EU3
Body size: 4285x1695x1495
Interior (LxWxH): 1885x1420x1230
Wheelbase: 2680
Track f/r: 1470mm/1465mm
Full weight, kg: 1190
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: D17A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x94.4
Engine size, cc: 1668
Compression ratio: 9.9
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 130ps(96kW)/6300rpm
Max torque, Nm/rpm: 15.8kg m(155N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/60R15 88H
Rear wheel: 195/60R15 88H
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.466~0.449	—	—	—	—	—	—	—	—	4.579~2.414

Available colors

black / Nighthawk Black PearlwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Satin Silver MetallicRedBlue / Other BlueDark cyanPearl / Other PearlGold
