HONDA CIVIC TYPE R X

HONDA CIVIC

EK9 · TYPE R X

Description

Modification: TYPE R X
Chassis ID: EK9
Dates releasing: 1999.12~
Base price, ¥: GF-EK9
Body size: 4185x1695x1360
Interior (LxWxH): 1695x1390x1115
Wheelbase: 2620
Track f/r: 1480mm/1480mm
Full weight, kg: 1070
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: B16B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 81.0x77.4
Engine size, cc: 1595
Compression ratio: 10.8
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 185ps(136kW)/8200rpm
Max torque, Nm/rpm: 16.3kg m(160N m)/7500rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/55R15 84V
Rear wheel: 195/55R15 84V
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not

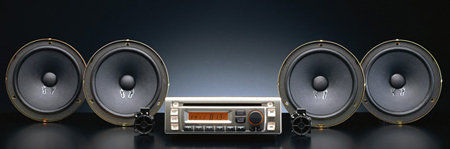

Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.230	2.105	1.458	1.107	0.848	—	—	—	3.000

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
