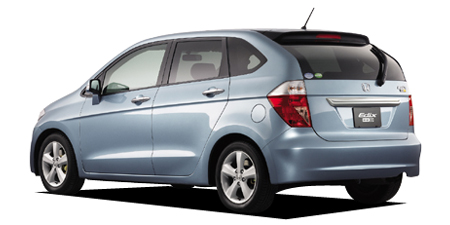

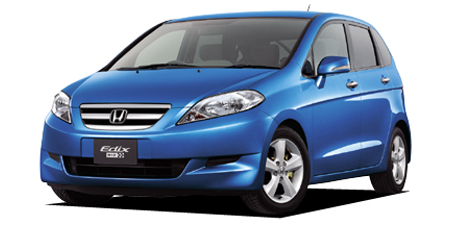

HONDA EDIX 20X

HONDA EDIX

BE3 · 20X

Description

Modification: 20X
Chassis ID: BE3
Dates releasing: 2004.7~
Base price, ¥: DBA-BE3
Body size: 4285x1795x1610
Interior (LxWxH): 1875x1535x1230
Wheelbase: 2680
Track f/r: 1550mm/1560mm
Full weight, kg: 1440
Body type: MV 1Box

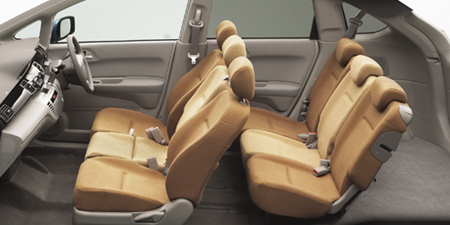

Doors / seats: 5 door / 6

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓

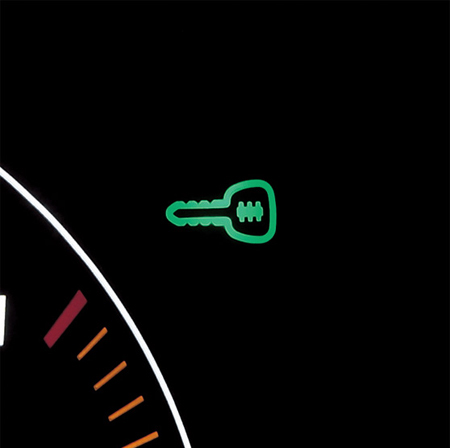

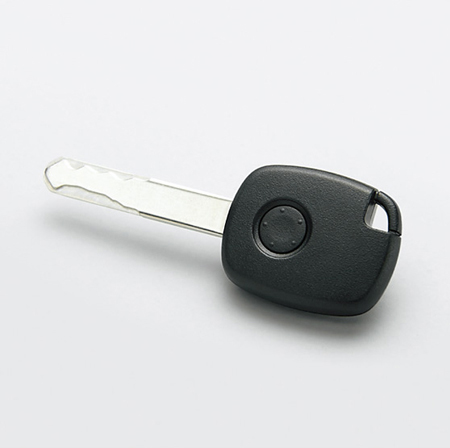

Anti-theft device: ✓
Additional equipment: ×

Comfort

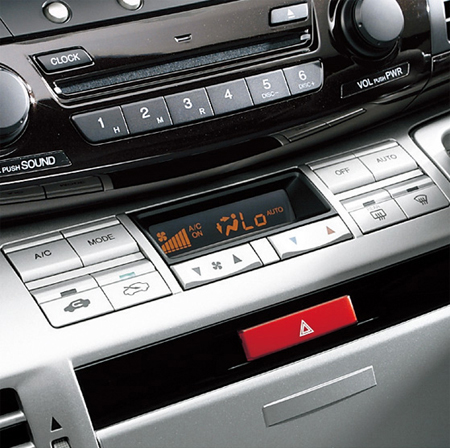

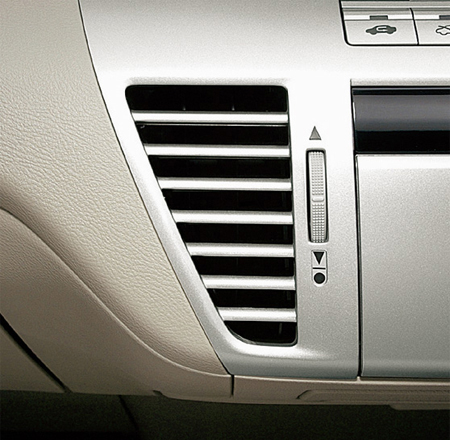

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

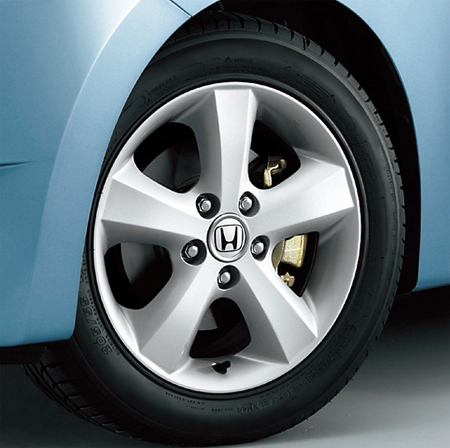

Alloy wheels: 16 inches standard

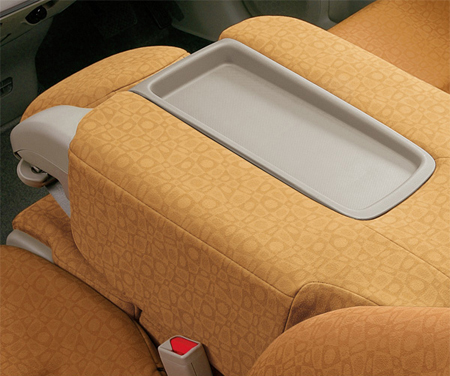

Folding seat: split
Glass w/ UV filter: ✓

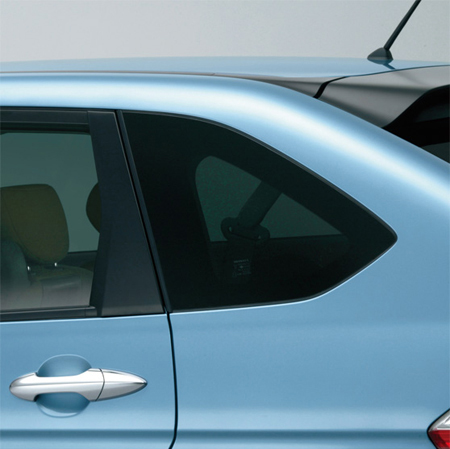

Toned glasses: ✓

Engine

Model: K20A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.7
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 156ps(115kW)/6500rpm
Max torque, Nm/rpm: 19.2kg m(188N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 58 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16 89V
Rear wheel: 205/55R16 89V
Min turn diameter, m: 5.2

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

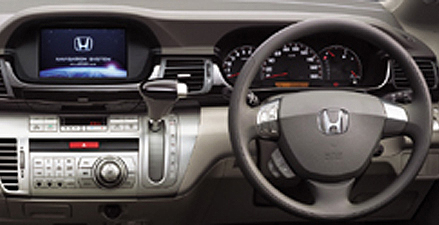

Navigation: ◯
Navigation device: HDD

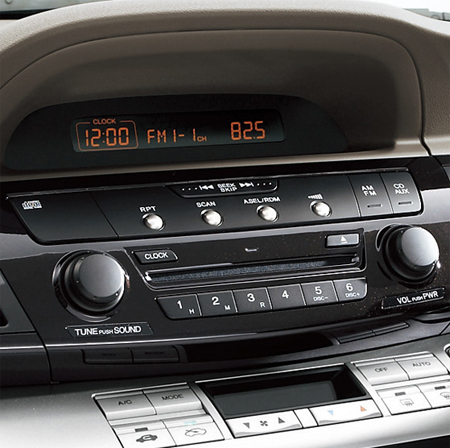

Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.684	1.500	1.030	0.772	0.571	—	—	—	2.000

Available colors

black / Nighthawk Black PearlwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Satin Silver MetallicRed / Milano RedBlue / Other BlueDark cyanPearl / Premium White PearlGold
