JDM Vehicle Catalog

Vehicle Specs

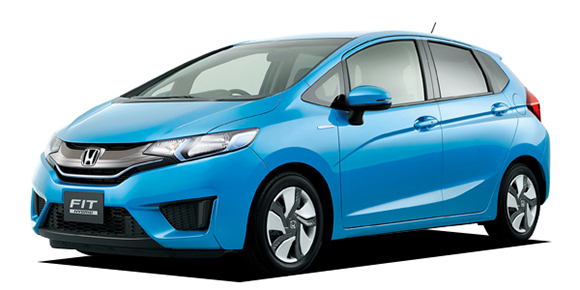

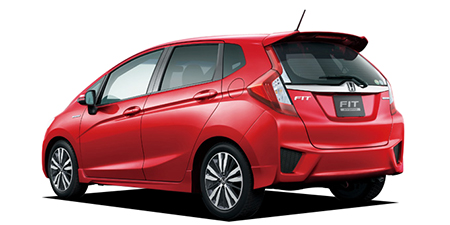

HONDA FIT HYBRID S PACKAGE

HONDA FIT HYBRID

GP5 · S PACKAGE

Description

Modification: S PACKAGE
Chassis ID: GP5
Dates releasing: 2014.4~
Base price, ¥: DAA-GP5
Body size: 3955x1695x1525
Interior (LxWxH): 1935x1450x1280
Wheelbase: 2530
Track f/r: 1475mm/1465mm
Full weight, kg: 1140
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

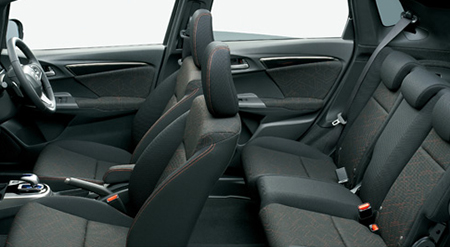

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: LEB
Type: water cooling inline 4 cylinder DOHC 16-valves +
Bore x stroke, mm: 73.0x89.4
Engine size, cc: 1496
Compression ratio: 13.5
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 110ps(81kW)/6000rpm
Max torque, Nm/rpm: 13.7kg m(134N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/55R16 83V
Rear wheel: 185/55R16 83V
Min turn diameter, m: 5.2

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.148	2.007	1.481	1.098	0.810	0.605	0.446	—	3.221

Available colors

black / Crystal black pearlwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Alabaster Silver Metallic / Other SilverRed / Milano RedBlue / Other BlueDark cyanPearl / Premium White PearlGold / Other Gold
