HONDA FIT SHUTTLE HYBRID HYBRID SMART SELECTION

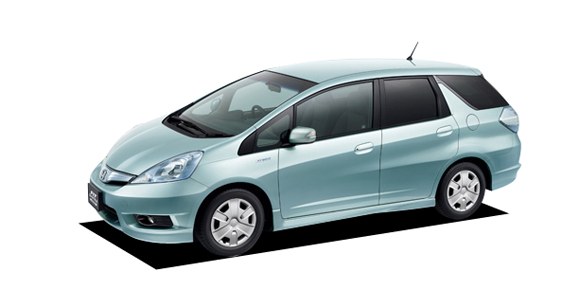

HONDA FIT SHUTTLE HYBRID

GP2 · HYBRID SMART SELECTION

Description

Modification: HYBRID SMART SELECTION
Chassis ID: GP2
Dates releasing: 2012.6~
Base price, ¥: DAA-GP2
Body size: 4410x1695x1540
Interior (LxWxH): 1905x1415x1290
Wheelbase: 2500
Track f/r: 1480mm/1470mm
Full weight, kg: 1200
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓

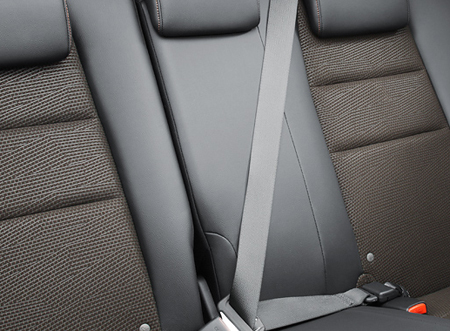

Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横滑り抑制)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

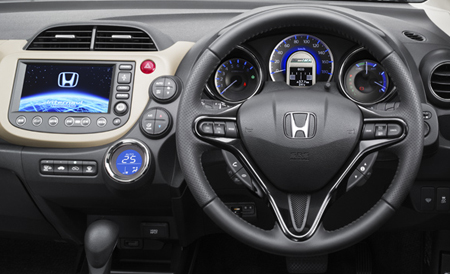

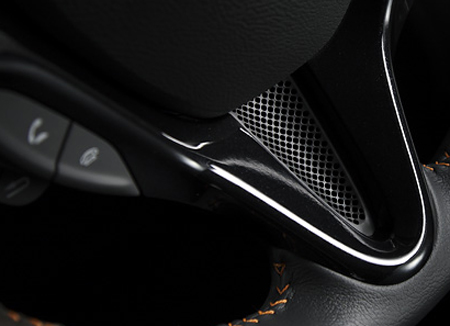

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES

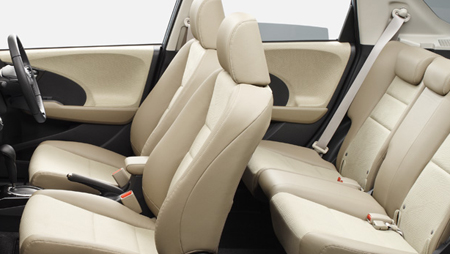

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

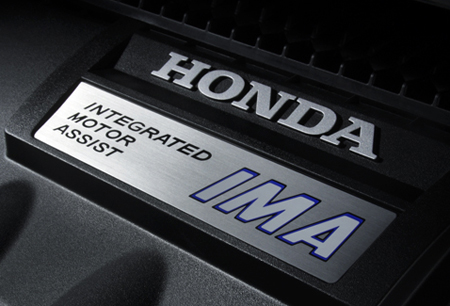

Engine

Model: LDA
Type: water cooling inline 4 cylinder SOHC 8-valves +
Bore x stroke, mm: 73.0x80.0
Engine size, cc: 1339
Compression ratio: 10.8
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 88ps(65kW)/5800rpm
Max torque, Nm/rpm: 12.3kg m(121N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/60R15 84H
Rear wheel: 185/60R15 84H
Min turn diameter, m: 5.1

Gearbox

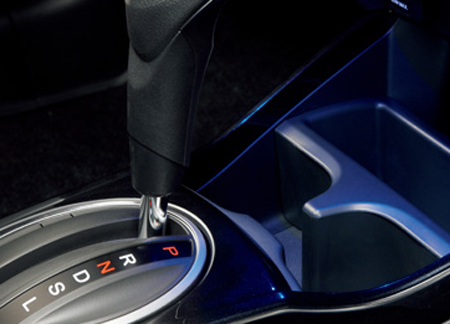

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×

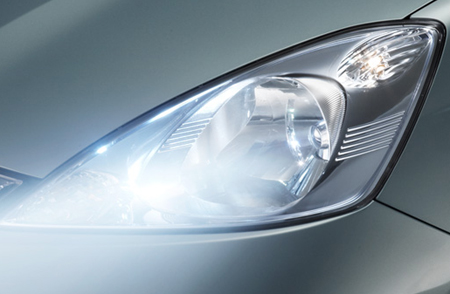

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.526~0.421	—	—	—	—	—	—	—	—	4.510~1.692

Available colors

black / Crystal black pearlwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Alabaster Silver MetallicRed / Milano RedBlue / Other BlueDark cyan / Other Dark cyanPearl / Premium White PearlGold
