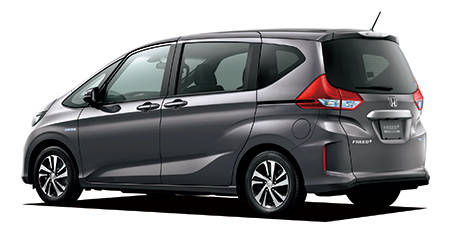

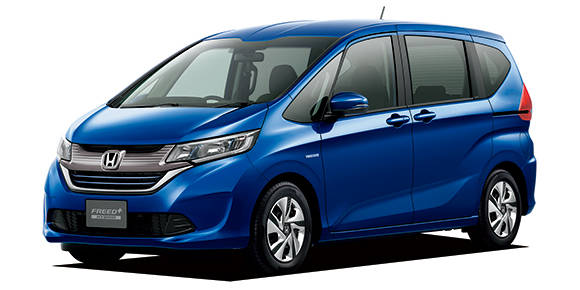

HONDA FREED PLUS HYBRID HYBRID EX

HONDA FREED PLUS HYBRID

GB7 · HYBRID EX

Description

Modification: HYBRID EX
Chassis ID: GB7
Dates releasing: 2016.9~
Base price, ¥: DAA-GB7
Body size: 4295x1695x1710
Interior (LxWxH): 2310x1455x1275
Wheelbase: 2740
Track f/r: 1480mm/1485mm
Full weight, kg: 1430
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: LEB
Type: water cooling inline 4 cylinder DOHC 16-valves +
Bore x stroke, mm: 73.0x89.4
Engine size, cc: 1496
Compression ratio: 13.5
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 110ps(81kW)/6000rpm
Max torque, Nm/rpm: 13.7kg m(134N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 36 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R15 88S
Rear wheel: 185/65R15 88S
Min turn diameter, m: 5.2

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.192	2.266	1.642	1.118	0.810	0.616	0.446	—	3.335

Available colors

black / Crystal black pearlwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
