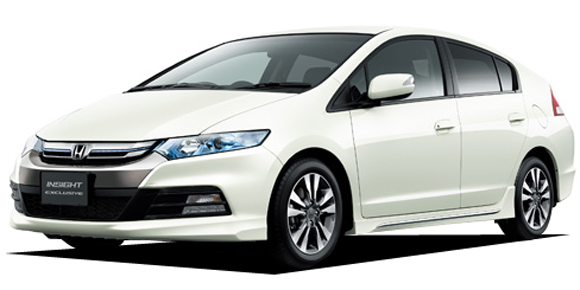

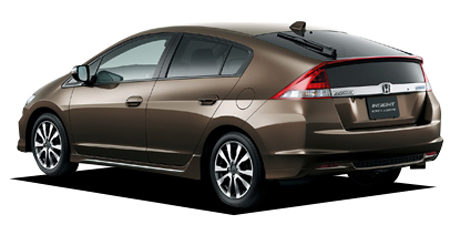

HONDA INSIGHT EXCLUSIVE XL

HONDA INSIGHT EXCLUSIVE

ZE3 · XL

Description

Modification: XL
Chassis ID: ZE3
Dates releasing: 2011.11~
Base price, ¥: DAA-ZE3
Body size: 4395x1695x1435
Interior (LxWxH): 1935x1430x1150
Wheelbase: 2550
Track f/r: 1480mm/1470mm
Full weight, kg: 1210
Body type: Sedan
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

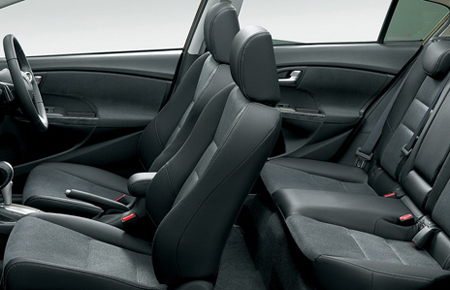

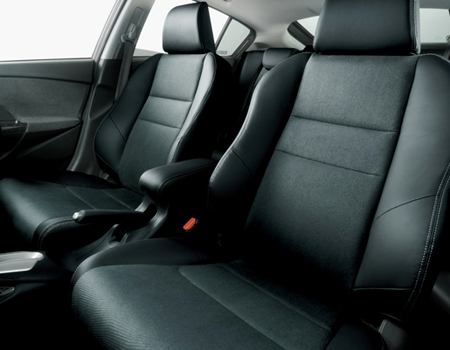

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

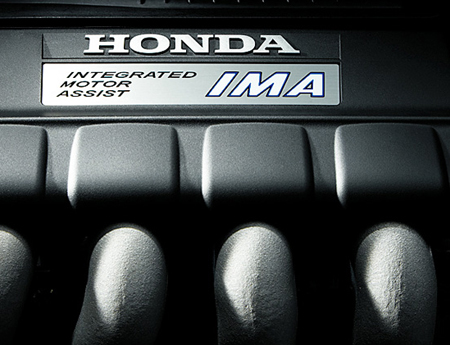

Engine

Model: LEA
Type: water cooling inline 4 cylinder SOHC 8-valves +
Bore x stroke, mm: 73.0x89.4
Engine size, cc: 1496
Compression ratio: 10.4
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 111ps(82kW)/6000rpm
Max torque, Nm/rpm: 14.5kg m(142N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/60R15 84H
Rear wheel: 185/60R15 84H
Min turn diameter, m: 5.0

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): ✓ / ✓
Wiper: ✓

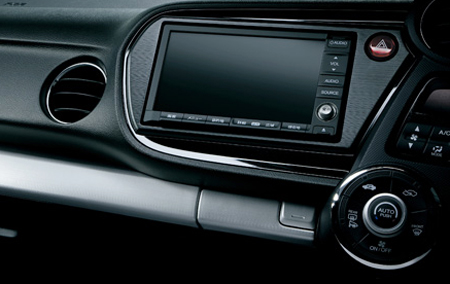

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.526~0.421	—	—	—	—	—	—	—	—	4.510~1.692

Available colors

black / Crystal black pearlwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Alabaster Silver MetallicRed / Other RedBlue / Other BlueDark cyanPearl / Premium White PearlGold
