Vehicle Specs

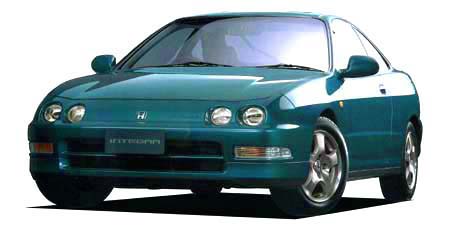

HONDA INTEGRA ZX EXTRA

HONDA INTEGRA

DC1 · ZX EXTRA

Description

Modification: ZX EXTRA
Chassis ID: DC1
Dates releasing: 1994.4~
Base price, ¥: E-DC1
Body size: 4380x1695x1335
Interior (LxWxH): 1650x1385x1090
Wheelbase: 2570
Track f/r: 1475mm/1465mm
Full weight, kg: 1050
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ZC
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x90.0
Engine size, cc: 1590
Compression ratio: 9.1
Fuel injection: キャブレター type (2連)
Max power, hp/rpm: 105ps(77kW)/6300rpm
Max torque, Nm/rpm: 13.8kg m(135.3N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 175/65R14 82H
Rear wheel: 175/65R14 82H
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.722	1.500	1.027	0.780	—	—	—	—	1.954

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Milano RedBlueDark cyanPearlGold
