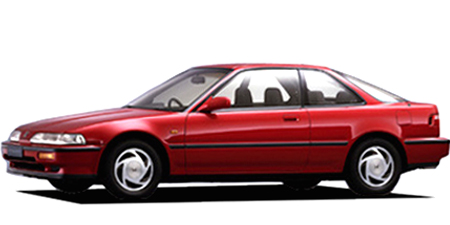

HONDA INTEGRA ZXI VERSION S

HONDA INTEGRA

DA5 · ZXI VERSION S

Description

Modification: ZXI VERSION S
Chassis ID: DA5
Dates releasing: 1991.2~
Base price, ¥: E-DA5
Body size: 4390x1695x1325
Interior (LxWxH): 1730x1400x1105
Wheelbase: 2550
Track f/r: 1475mm/1475mm
Full weight, kg: 1060
Body type: Coupe
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ZC
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x90.0
Engine size, cc: 1590
Compression ratio: 9.1
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 120ps(88kW)/6300rpm
Max torque, Nm/rpm: 14.5kg m(142N m)/5500rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R14 85H
Rear wheel: 185/65R14 85H
Min turn diameter, m: 5.0

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.250	1.894	1.259	0.937	0.771	—	—	—	3.153

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
