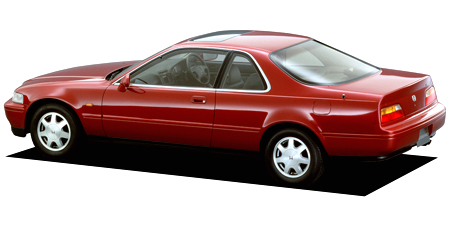

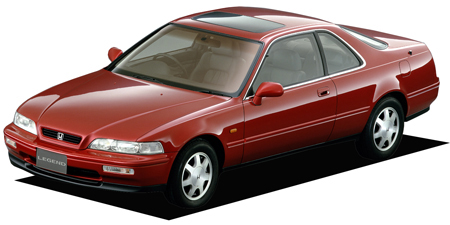

HONDA LEGEND COUPE BASEGRADE

HONDA LEGEND COUPE

KA8 · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: KA8
Dates releasing: 1991.1~
Base price, ¥: E-KA8
Body size: 4880x1810x1370
Interior (LxWxH): 1790x1460x1045
Wheelbase: 2830
Track f/r: 1550mm/1540mm
Full weight, kg: 1570
Body type: Coupe
Doors / seats: 2 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —

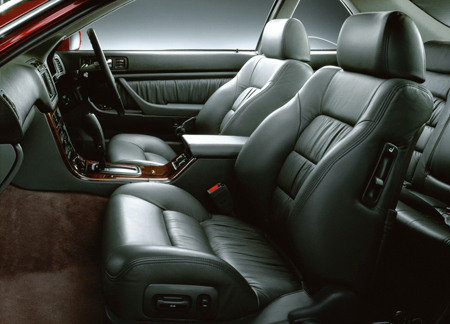

Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: C32A
Type: water cooling V-type 6 cylinder SOHC 24-valves
Bore x stroke, mm: 90.0x84.0
Engine size, cc: 3206
Compression ratio: 10.0
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 215ps(158kW)/5500rpm
Max torque, Nm/rpm: 30.5kg m(299.1N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 68 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 13.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/65R15 93H
Rear wheel: 205/65R15 93H
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

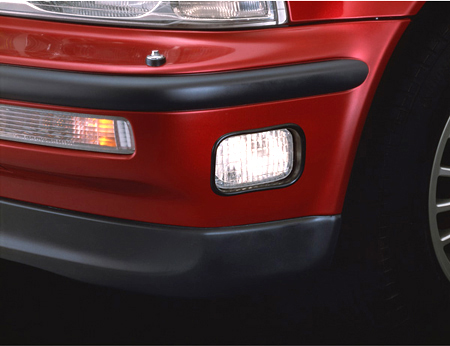

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.476	1.451	0.973	0.630	—	—	—	—	1.809

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
