HONDA NVAN ファン

HONDA NVAN

JJ2 · ファン

Description

Modification: ファン
Chassis ID: JJ2
Dates releasing: 2026.3~
Base price, ¥: 5BD-JJ2
Body size: 3395x1475x1960
Interior (LxWxH): ----x----x----
Wheelbase: 2520
Track f/r: 1310mm/1310mm
Full weight, kg: 1010
Body type: Kei-cab van
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓

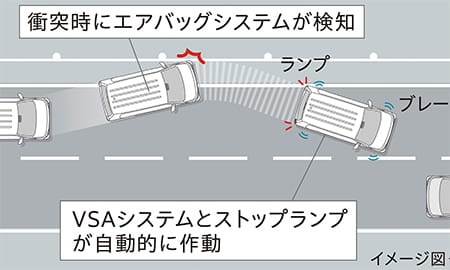

Additional equipment: VSA

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: S07B
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 60.0x77.6
Engine size, cc: 658
Compression ratio: 12.0
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 53ps(39kW)/6800rpm
Max torque, Nm/rpm: 6.5kg m(64N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 25 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ドディオン
Front brake: disk
Rear brake: Drum
Front wheel: 145/80R12
Rear wheel: 145/80R12
Min turn diameter, m: 4.7

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
3.677~0.753	—	—	—	—	—	—	—	—	2.645~1.313

Available colors

black / Nighthawk Black Pearlwhite / Platinum White PearlgreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
