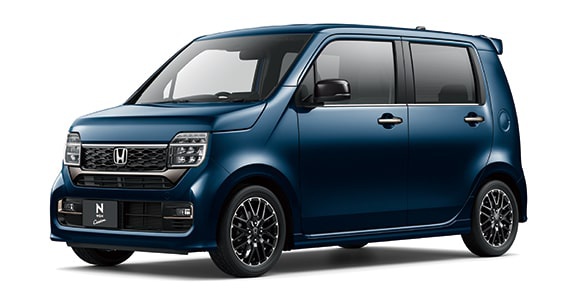

HONDA NWGN CUSTOM L

HONDA NWGN CUSTOM

JH4 · L

Description

Modification: L
Chassis ID: JH4
Dates releasing: 2022.9~
Base price, ¥: 6BA-JH4
Body size: 3395x1475x1725

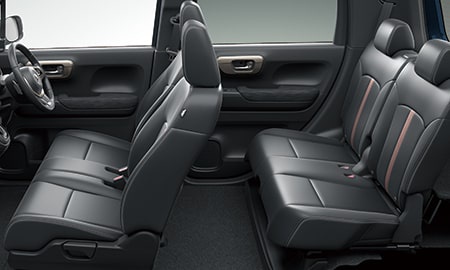

Interior (LxWxH): 2055x1350x1300
Wheelbase: 2520
Track f/r: 1300mm/1305mm
Full weight, kg: 920
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

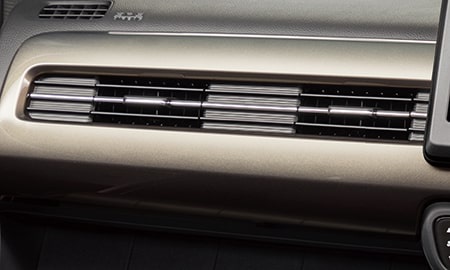

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: S07B
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 60.0x77.6
Engine size, cc: 658
Compression ratio: 12.0
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 58ps(43kW)/7300rpm
Max torque, Nm/rpm: 6.6kg m(65N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 25 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ドディオン
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/65R14 75S
Rear wheel: 155/65R14 75S
Min turn diameter, m: 4.7

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×

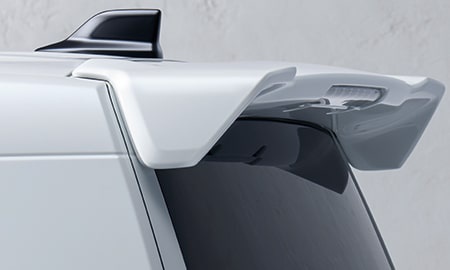

Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
3.680~0.674	—	—	—	—	—	—	—	—	2.958~1.620

Available colors

black / Crystal black pearlwhite / Platinum White PearlgreenMaroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
