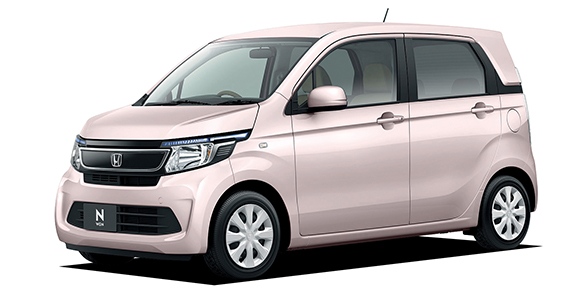

HONDA NWGN G

HONDA NWGN

JH1 · G

Description

Modification: G
Chassis ID: JH1
Dates releasing: 2013.11~
Base price, ¥: DBA-JH1
Body size: 3395x1475x1655
Interior (LxWxH): 2055x1355x1300
Wheelbase: 2520
Track f/r: 1305mm/1305mm
Full weight, kg: 820
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

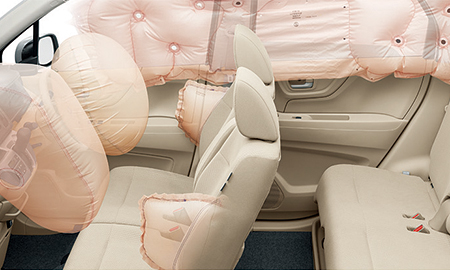

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

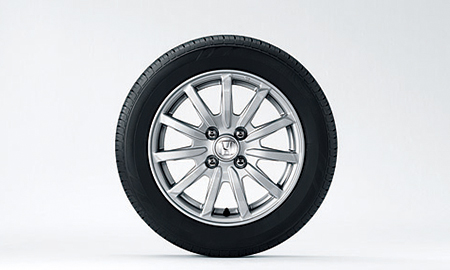

Alloy wheels: Option settings NO

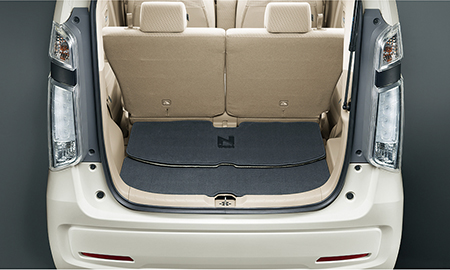

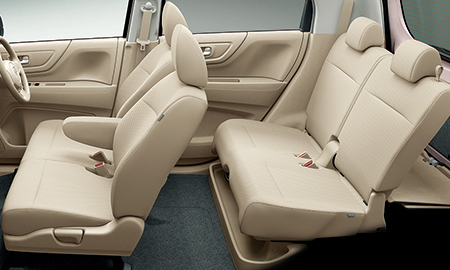

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: S07A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 64.0x68.2
Engine size, cc: 658
Compression ratio: 11.8
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 58ps(43kW)/7300rpm
Max torque, Nm/rpm: 6.6kg m(65N m)/4700rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: disk
Rear brake: Drum

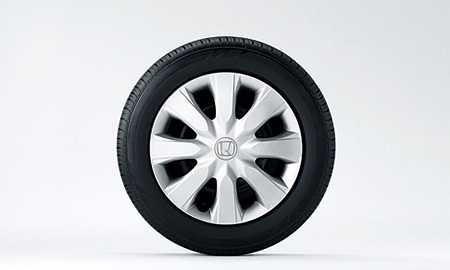

Front wheel: 155/65R14 75S
Rear wheel: 155/65R14 75S
Min turn diameter, m: 4.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
3.680~0.674	—	—	—	—	—	—	—	—	2.722~1.484

Available colors

black / SMART BLACKwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)Magenta / Other MagentaSilver / Other SilverRedBlueDark cyanPearl / Premium White PearlGold
