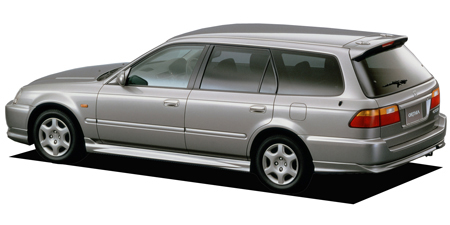

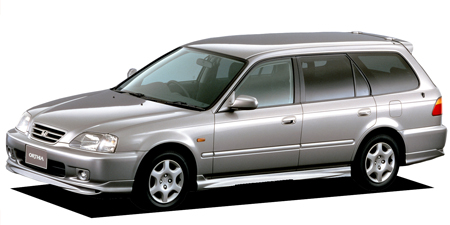

HONDA ORTHIA GX

HONDA ORTHIA

EL1 · GX

Description

Modification: GX
Chassis ID: EL1
Dates releasing: 1998.1~
Base price, ¥: E-EL1
Body size: 4570x1695x1485
Interior (LxWxH): 1765x1405x1150
Wheelbase: 2620
Track f/r: 1475mm/1475mm
Full weight, kg: 1180
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

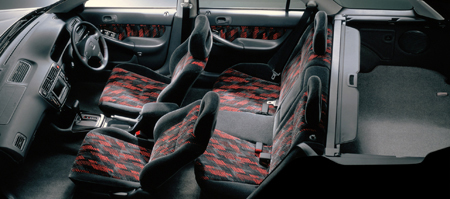

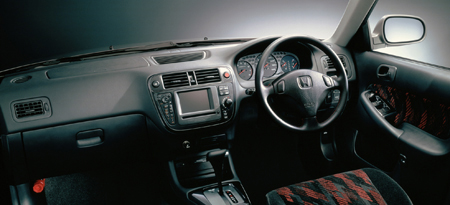

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: B18B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 81.0x89.0
Engine size, cc: 1834
Compression ratio: 9.2
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 140ps(103kW)/6300rpm
Max torque, Nm/rpm: 17.4kg m(170.6N m)/5200rpm
Supercharger: ×
Fuel tank, liters: 52 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R14 86S
Rear wheel: 185/65R14 86S
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.230	1.900	1.269	0.966	0.714	—	—	—	3.000

Available colors

black / Other blackwhite / Taffeta Whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
