HONDA ORTHIA S

HONDA ORTHIA

EL2 · S

Description

Modification: S
Chassis ID: EL2
Dates releasing: 2000.9~
Base price, ¥: GF-EL2
Body size: 4570x1695x1435
Interior (LxWxH): 1755x1405x1150
Wheelbase: 2620
Track f/r: 1480mm/1470mm
Full weight, kg: 1240
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯

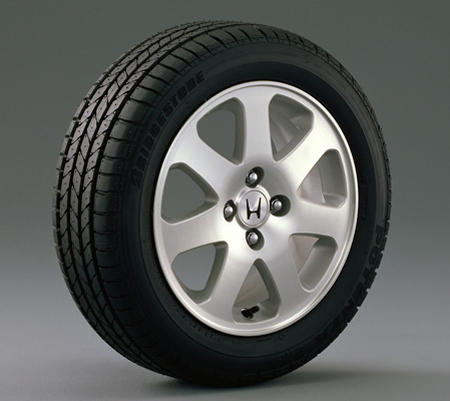

Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: B20B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 84.0x89.0
Engine size, cc: 1972
Compression ratio: 9.6
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 150ps(110kW)/6300rpm
Max torque, Nm/rpm: 18.8kg m(184N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 52 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/55R15 84V
Rear wheel: 195/55R15 84V
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: CD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.722	1.516	1.078	0.711	—	—	—	—	1.954

Available colors

black / Nighthawk Black Pearlwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Satin Silver MetallicRed / Milano RedBlue / Other BlueDark cyanPearl / Taffeta WhiteGold
