JDM Vehicle Catalog

Vehicle Specs

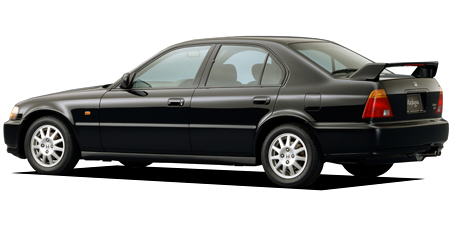

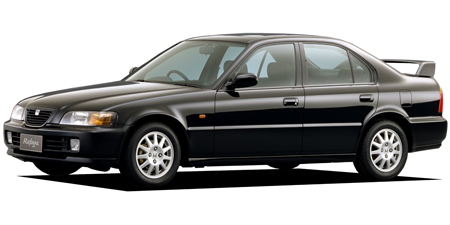

HONDA RAFAGA 2.0CS

HONDA RAFAGA

CE4 · 2.0CS

Description

Modification: 2.0CS
Chassis ID: CE4
Dates releasing: 1995.6~
Base price, ¥: E-CE4
Body size: 4555x1695x1425
Interior (LxWxH): 1895x1385x1155
Wheelbase: 2770
Track f/r: 1465mm/1465mm
Full weight, kg: 1320
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G20A
Type: water cooling inline 5 cylinder SOHC 20-valves
Bore x stroke, mm: 82.0x75.6
Engine size, cc: 1996
Compression ratio: 9.3
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 160ps(118kW)/6700rpm
Max torque, Nm/rpm: 19.0kg m(186.3N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R15 87V
Rear wheel: 205/55R15 87V
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.650	1.531	1.051	0.723	—	—	—	—	1.904

Available colors

black / Other blackwhite / Taffeta WhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
