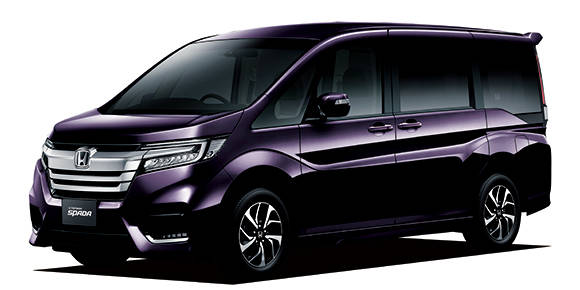

HONDA STEPWAGON SPADA SPADA HONDA SENSING

HONDA STEPWAGON SPADA

RP3 · SPADA HONDA SENSING

Description

Modification: SPADA HONDA SENSING
Chassis ID: RP3
Dates releasing: 2017.9~
Base price, ¥: DBA-RP3
Body size: 4760x1695x1840
Interior (LxWxH): 3220x1500x1425
Wheelbase: 2890
Track f/r: 1470mm/1485mm
Full weight, kg: 1680
Body type: MV 1Box

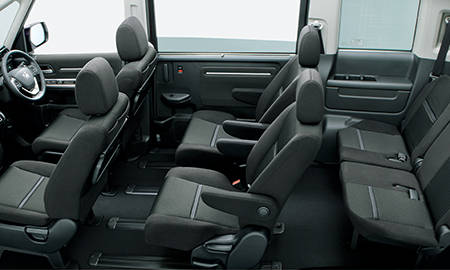

Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓

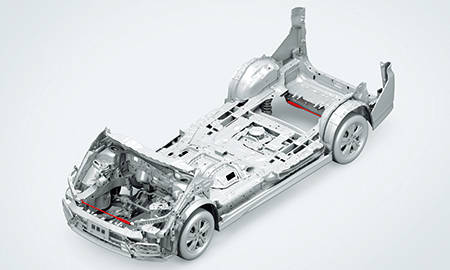

Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

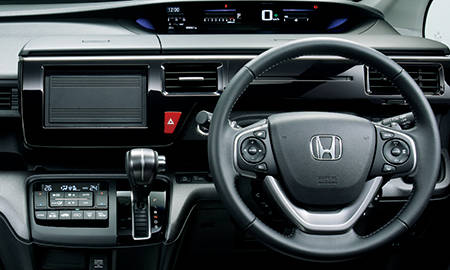

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

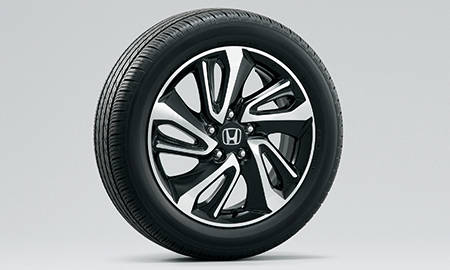

Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: L15B
Type: water cooling inline 4 cylinder DOHC 16-valves turbo
Bore x stroke, mm: 73.0x89.4
Engine size, cc: 1496
Compression ratio: 10.6
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 150ps(110kW)/5500rpm
Max torque, Nm/rpm: 20.7kg m(203N m)/1600~5000rpm
Supercharger: Turbo
Fuel tank, liters: 52 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92H
Rear wheel: 205/60R16 92H
Min turn diameter, m: 5.4

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

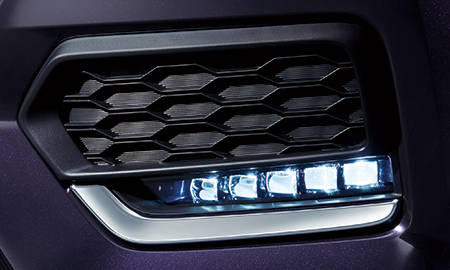

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

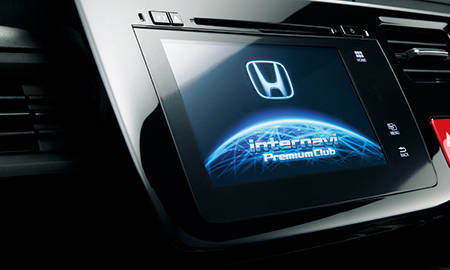

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.645~0.405	—	—	—	—	—	—	—	—	1.858~1.264

Available colors

black / Other blackwhite / Platinum White PearlgreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
