HONDA STEPWAGON B HONDA SENSING

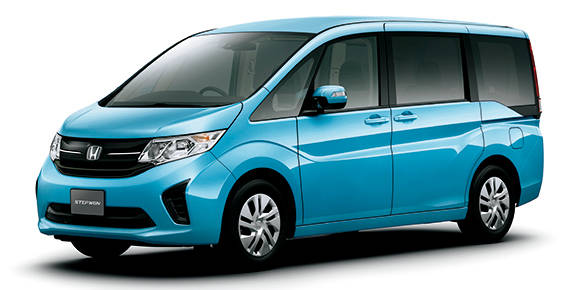

HONDA STEPWAGON

RP2 · B HONDA SENSING

Description

Modification: B HONDA SENSING
Chassis ID: RP2
Dates releasing: 2017.9~
Base price, ¥: DBA-RP2
Body size: 4690x1695x1855
Interior (LxWxH): 3220x1500x1425
Wheelbase: 2890
Track f/r: 1470mm/1485mm
Full weight, kg: 1720
Body type: MV 1Box

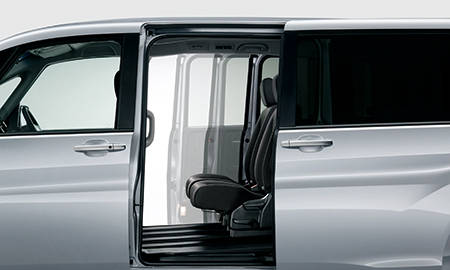

Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓

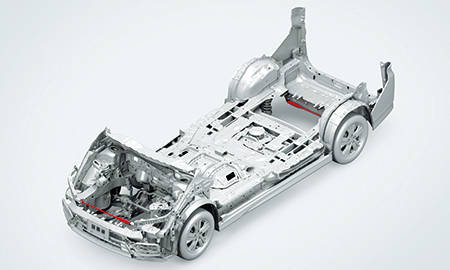

Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: L15B
Type: water cooling inline 4 cylinder DOHC 16-valves turbo
Bore x stroke, mm: 73.0x89.4
Engine size, cc: 1496
Compression ratio: 10.6
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 150ps(110kW)/5500rpm
Max torque, Nm/rpm: 20.7kg m(203N m)/1600~5000rpm
Supercharger: Turbo
Fuel tank, liters: 52 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ドディオン
Front brake: Ventilated disk
Rear brake: disk

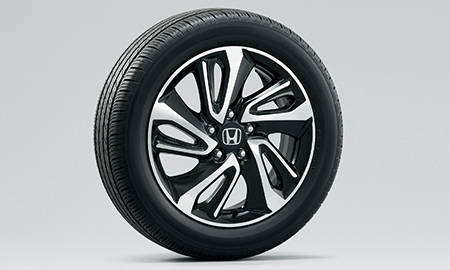

Front wheel: 205/60R16 92H
Rear wheel: 205/60R16 92H
Min turn diameter, m: 5.4

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

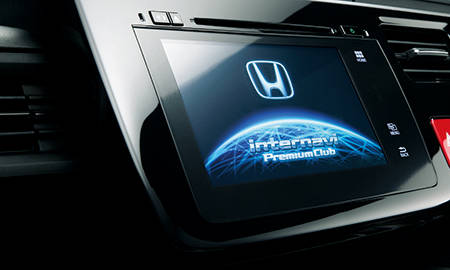

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.645~0.405	—	—	—	—	—	—	—	—	1.858~1.264

Available colors

black / Crystal black pearlwhite / Platinum White PearlgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
