HONDA STEPWAGON G

HONDA STEPWAGON

RF2 · G

Description

Modification: G
Chassis ID: RF2
Dates releasing: 1996.5~
Base price, ¥: E-RF2
Body size: 4605x1695x1845
Interior (LxWxH): 2730x1575x1335
Wheelbase: 2800
Track f/r: 1480mm/1475mm
Full weight, kg: 1510
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

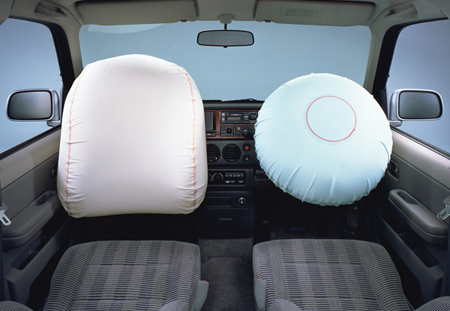

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×

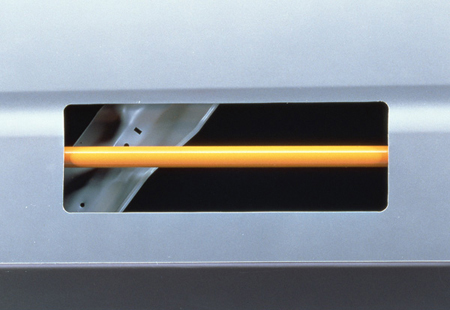

Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B20B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 84.0x89.0
Engine size, cc: 1972
Compression ratio: 9.2
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 125ps(92kW)/5500rpm
Max torque, Nm/rpm: 18.5kg m(181.4N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ウイッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯

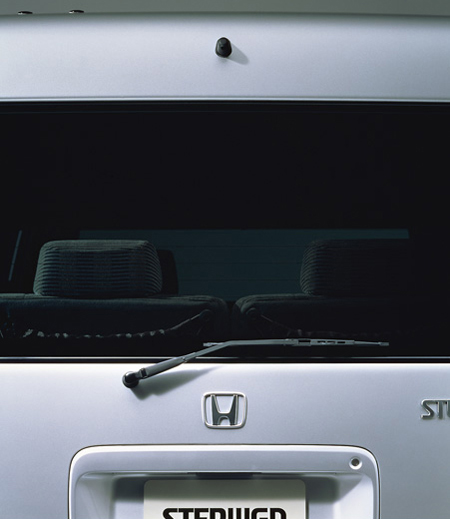

Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not

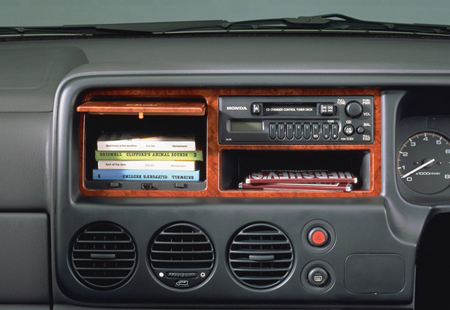

Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.722	1.516	1.078	0.711	—	—	—	—	1.954

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
