HONDA STEPWAGON G E SELECTION

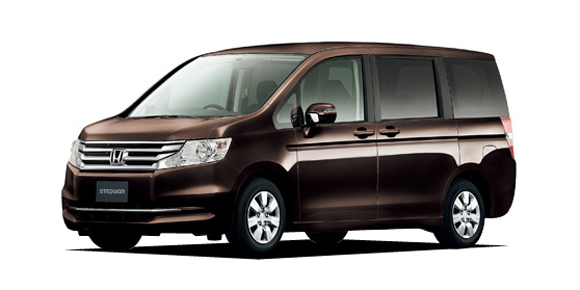

HONDA STEPWAGON

RK1 · G E SELECTION

Description

Modification: G E SELECTION
Chassis ID: RK1
Dates releasing: 2012.11~
Base price, ¥: DBA-RK1
Body size: 4690x1695x1815

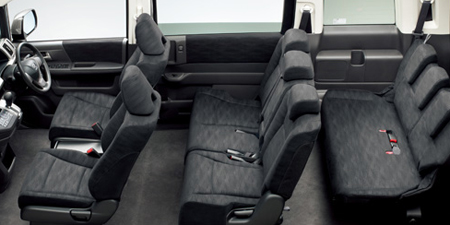

Interior (LxWxH): 3095x1500x1395
Wheelbase: 2855
Track f/r: 1470mm/1460mm
Full weight, kg: 1620
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: R20A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 81.0x96.9
Engine size, cc: 1997
Compression ratio: 10.6
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 150ps(110kW)/6200rpm
Max torque, Nm/rpm: 19.7kg m(193N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91H
Rear wheel: 195/65R15 91H
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.645~0.405	—	—	—	—	—	—	—	—	1.859~1.307

Available colors

black / Crystal black pearlwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / Other PearlGold
