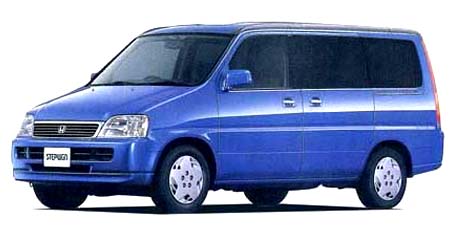

HONDA STEPWAGON G FIELD DECK

HONDA STEPWAGON

RF1 · G FIELD DECK

Description

Modification: G FIELD DECK
Chassis ID: RF1
Dates releasing: 1999.5~
Base price, ¥: GF-RF1
Body size: 4610x1695x1955
Interior (LxWxH): 2730x1575x1335
Wheelbase: 2800
Track f/r: 1485mm/1480mm
Full weight, kg: 1585
Body type: MV 1Box
Doors / seats: 4 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B20B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 84.0x89.0
Engine size, cc: 1972
Compression ratio: 9.6
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 135ps(99kW)/5500rpm
Max torque, Nm/rpm: 18.8kg m(184.4N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ウイッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.722	1.516	0.975	0.673	—	—	—	—	1.954

Available colors

black / Other blackwhite / Taffeta Whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
