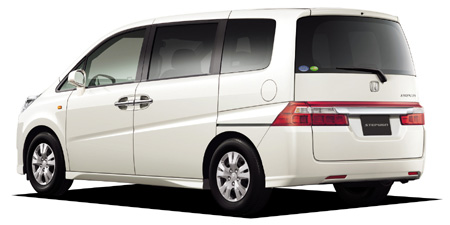

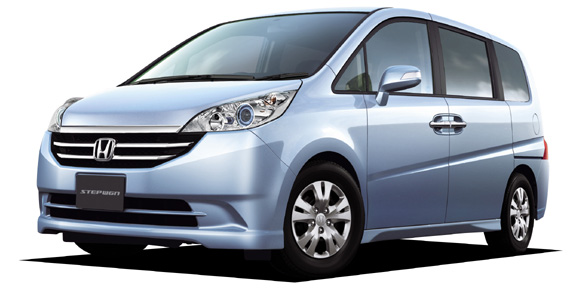

HONDA STEPWAGON G L PACKAGE

HONDA STEPWAGON

RG1 · G L PACKAGE

Description

Modification: G L PACKAGE
Chassis ID: RG1
Dates releasing: 2007.11~
Base price, ¥: DBA-RG1
Body size: 4640x1695x1770
Interior (LxWxH): 2775x1505x1350
Wheelbase: 2855
Track f/r: 1470mm/1460mm
Full weight, kg: 1530
Body type: MV 1Box

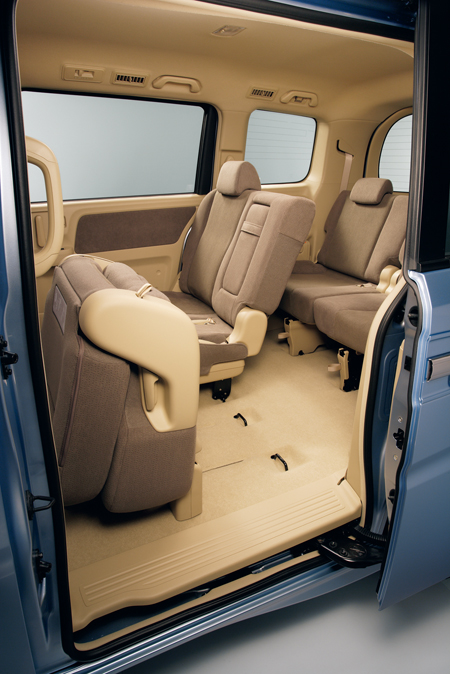

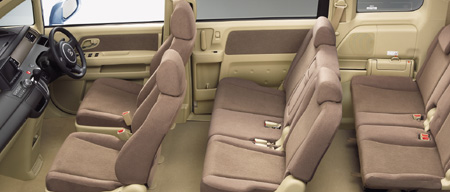

Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

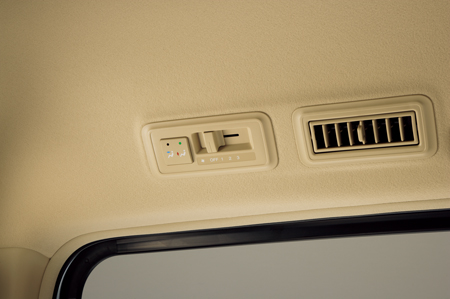

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES

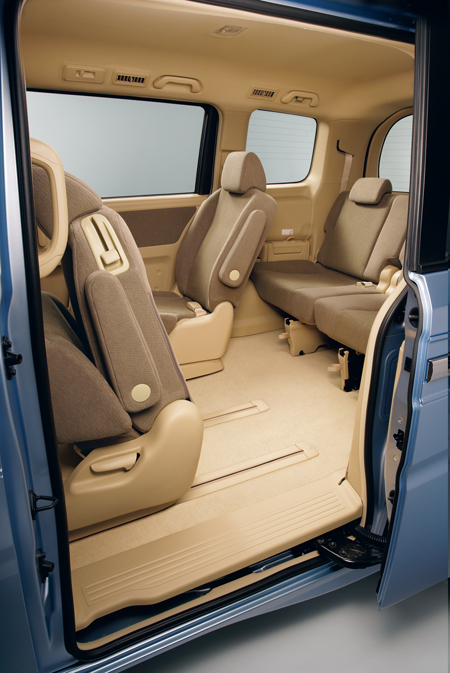

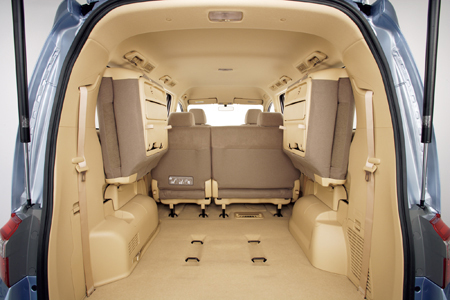

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K20A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.6
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 155ps(114kW)/6000rpm
Max torque, Nm/rpm: 19.2kg m(188N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 57 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson type ( Strut type )
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/65R15 94S
Rear wheel: 205/65R15 94S
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

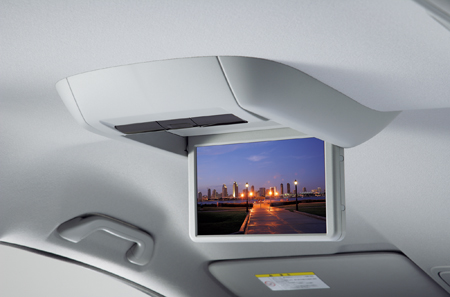

Navigation: ◯

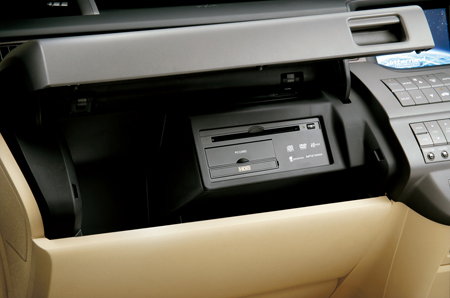

Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.684	1.534	1.081	0.695	—	—	—	—	2.000

Available colors

black / Nighthawk Black PearlwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Alabaster Silver MetallicRed / Other RedBlueDark cyanPearl / Premium White PearlGold
