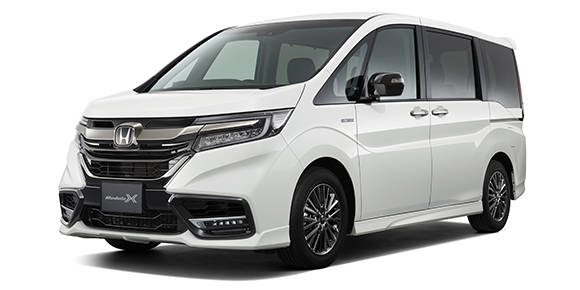

HONDA STEPWAGON HYBRID MODULO X HONDA SENSING

HONDA STEPWAGON

RP5 · HYBRID MODULO X HONDA SENSING

Description

Modification: HYBRID MODULO X HONDA SENSING
Chassis ID: RP5
Dates releasing: 2019.10~
Base price, ¥: 6AA-RP5
Body size: 4760x1695x1840
Interior (LxWxH): 3220x1500x1405
Wheelbase: 2890
Track f/r: 1470mm/1485mm
Full weight, kg: 1820
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

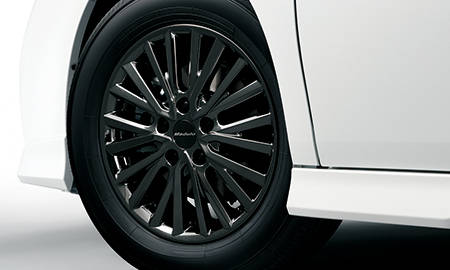

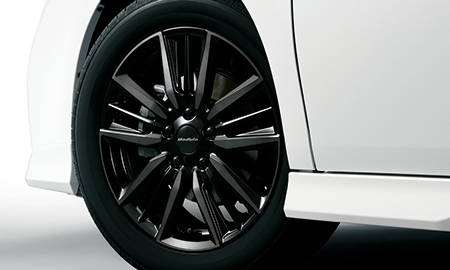

Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: LFA
Type: water cooling inline 4 cylinder DOHC 16-valves +
Bore x stroke, mm: 81.0x96.7
Engine size, cc: 1993
Compression ratio: 13.0
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 145ps(107kW)/6200rpm
Max torque, Nm/rpm: 17.8kg m(175N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 52 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4

Steering & suspension

Steering: Power assist equipped rack&pinion

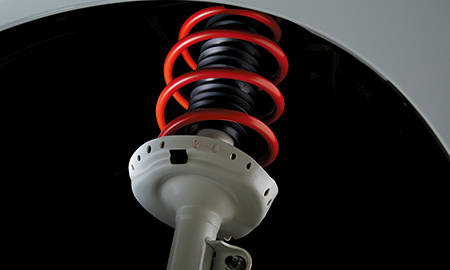

Front suspension: McPherson
Rear suspension: Axle
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92H
Rear wheel: 205/60R16 92H
Min turn diameter, m: 5.4

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

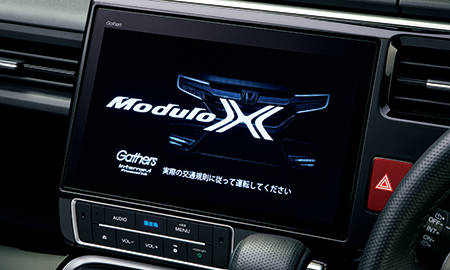

Navigation: ✓
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhite / Platinum White PearlgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
