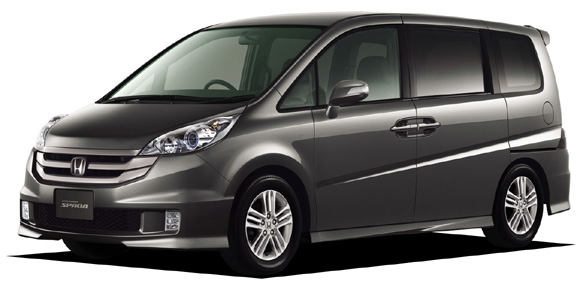

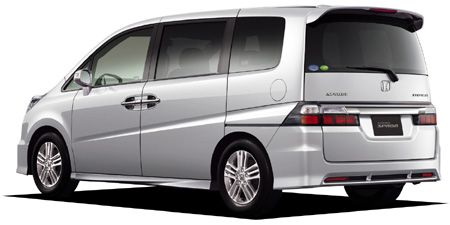

HONDA STEPWAGON SPADA 24SZI

HONDA STEPWAGON

RG3 · SPADA 24SZI

Description

Modification: SPADA 24SZI
Chassis ID: RG3
Dates releasing: 2007.11~
Base price, ¥: DBA-RG3
Body size: 4660x1695x1770
Interior (LxWxH): 2775x1505x1350
Wheelbase: 2855
Track f/r: 1470mm/1460mm
Full weight, kg: 1600
Body type: MV 1Box

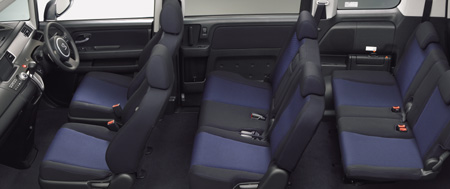

Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSA(ABS+TCS+横すべり抑制) 追突軽減ブレーキ+E-プリテンショナー(運転席/助手席)

Comfort

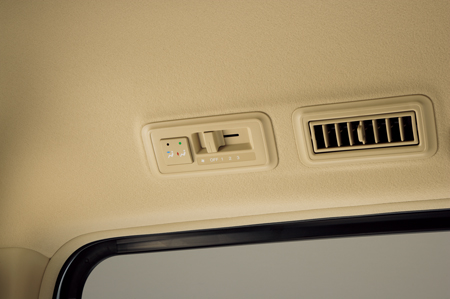

Air conditioner: Dual air conditioning

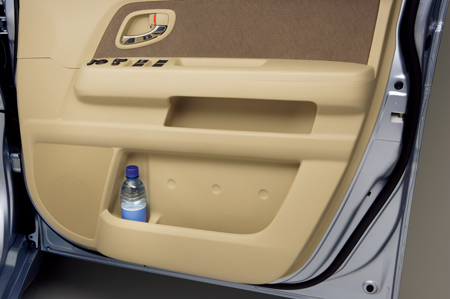

Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

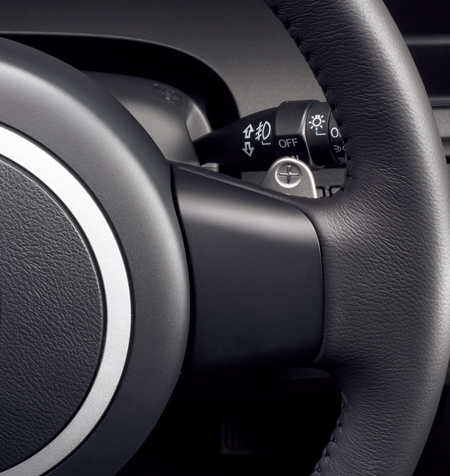

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard

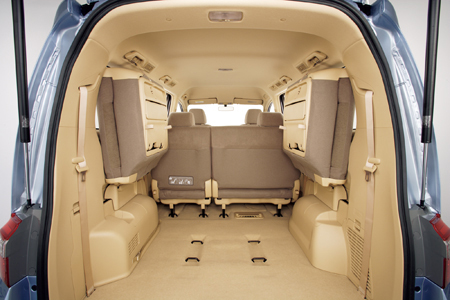

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K24A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.0x99.0
Engine size, cc: 2354
Compression ratio: 9.7
Fuel injection: 電子制御燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 162ps(119kW)/5700rpm
Max torque, Nm/rpm: 22.2kg m(218N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 57 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson type ( Strut type )
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R16 92H
Rear wheel: 205/60R16 92H
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

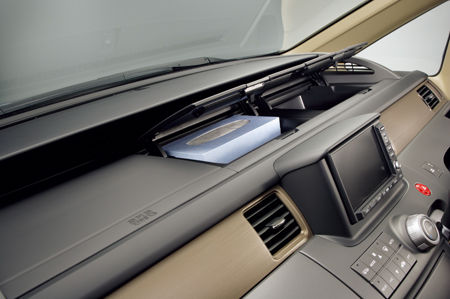

Navigation: ◯

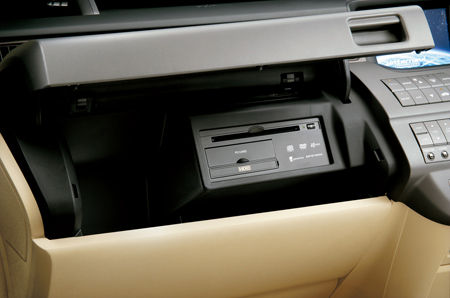

Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.470~0.450	—	—	—	—	—	—	—	—	1.735

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Alabaster Silver MetallicRed / Other RedBlueDark cyanPearl / Premium White PearlGold
