JDM Vehicle Catalog

Vehicle Specs

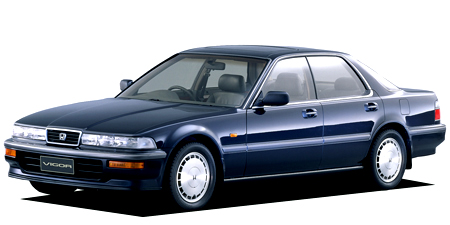

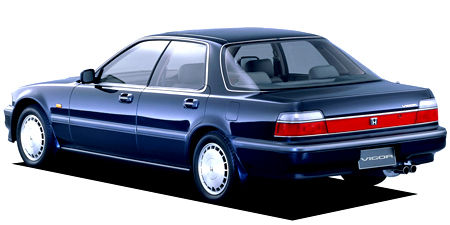

HONDA VIGOR TYPE E

HONDA VIGOR

CB5 · TYPE E

Description

Modification: TYPE E
Chassis ID: CB5
Dates releasing: 1989.9~
Base price, ¥: E-CB5
Body size: 4690x1695x1355
Interior (LxWxH): 1890x1385x1090
Wheelbase: 2805
Track f/r: 1465mm/1470mm
Full weight, kg: 1280
Body type: Hardtop
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G20A
Type: water cooling inline 5 cylinder SOHC 20-valves
Bore x stroke, mm: 82.0x75.6
Engine size, cc: 1996
Compression ratio: 9.7
Fuel injection: 電子燃料噴射 type ( HONDA PGM-FI)
Max power, hp/rpm: 160ps(118kW)/6700rpm
Max torque, Nm/rpm: 19.0kg m(186.3N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R14 89H
Rear wheel: 195/65R14 89H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.937	1.666	1.187	0.916	0.725	—	—	—	3.020

Available colors

black / Other blackwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
