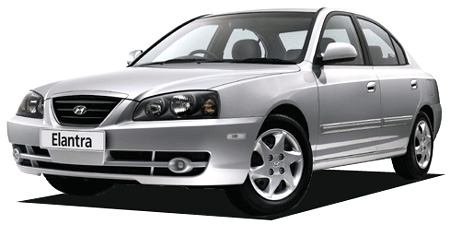

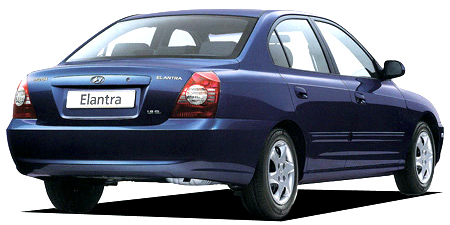

HYUNDAI ELANTRA 1.8GL

HYUNDAI ELANTRA

XD18 · 1.8GL

Description

Modification: 1.8GL
Chassis ID: XD18
Dates releasing: 2004.4~
Base price, ¥: GH-XD18
Body size: 4525x1725x1425
Interior (LxWxH): 1915x1440x1180
Wheelbase: 2610
Track f/r: 1485mm/1475mm
Full weight, kg: 1290
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G4GB
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 82.0x85.0
Engine size, cc: 1795
Compression ratio: 10.1
Fuel injection: Electronically controlled fuel injection system
Max power, hp/rpm: 128ps(94kW)/6000rpm
Max torque, Nm/rpm: 16.4kg m(161N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 55 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: デュアルリンク
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R15
Rear wheel: 185/65R15
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.529	1.000	0.712	—	—	—	—	2.480

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
