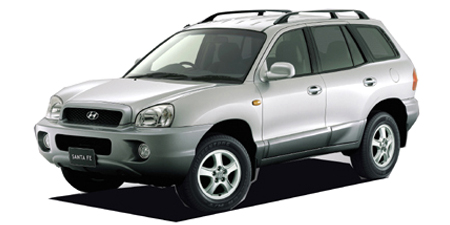

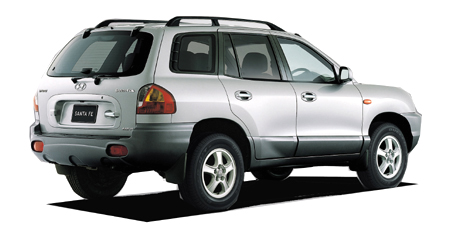

HYUNDAI SANTA FE 2.4GLS

HYUNDAI SANTA FE

SM24 · 2.4GLS

Description

Modification: 2.4GLS
Chassis ID: SM24
Dates releasing: 2004.4~
Base price, ¥: GH-SM24
Body size: 4500x1845x1710
Interior (LxWxH): 1910x1470x1185
Wheelbase: 2620
Track f/r: 1540mm/1540mm
Full weight, kg: 1640
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: G4JS
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.5x100.0
Engine size, cc: 2351
Compression ratio: 10.0
Fuel injection: Electronically controlled fuel injection system
Max power, hp/rpm: 142ps(104kW)/5500rpm
Max torque, Nm/rpm: 20.3kg m(199N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 11.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson
Rear suspension: ダブルウィッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/70R15
Rear wheel: 215/70R15
Min turn diameter, m: 5.6

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.495	1.000	0.731	—	—	—	—	2.720

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Other Gold
