JDM Vehicle Catalog

Vehicle Specs

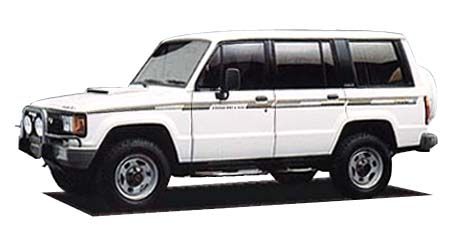

ISUZU BIGHORN BASIC LONG

ISUZU BIGHORN

UBS55FK · BASIC LONG

Description

Modification: BASIC LONG
Chassis ID: UBS55FK
Dates releasing: 1989.12~
Base price, ¥: S-UBS55FK
Body size: 4470x1650x1820
Interior (LxWxH): ----x----x----
Wheelbase: 2650
Track f/r: 1390mm/1400mm
Full weight, kg: 1710
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4JB1-T
Type: inline 4 cylinder OHVturbo (Diesel)
Bore x stroke, mm: 93.0x102.0
Engine size, cc: 2771
Compression ratio: 17.5
Fuel injection: 分配型燃料噴射ポンプ
Max power, hp/rpm: 110ps(81kW)/3600rpm
Max torque, Nm/rpm: 23.0kg m(225.6N m)/2300rpm
Supercharger: Turbo
Fuel tank, liters: 83 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone トーションバースプリング type Independen
Rear suspension: 半楕円リーフスプリング type 車軸懸架
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/80R15
Rear wheel: 215/80R15
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ◯

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.767	2.314	1.404	1.000	0.809	—	—	—	3.873

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
